822475-2

Obsolete

TE Connectivity AMP Connectors

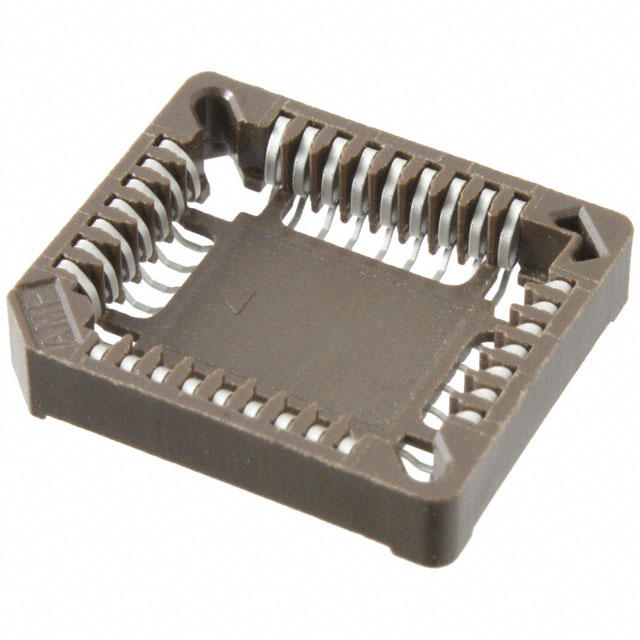

CONN SOCKET PLCC 32POS TIN

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PLCC 32POS TIN

Technical Specifications

Parameters and characteristics for this part

Specification	822475-2

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	150 Áin
Contact Finish Thickness - Mating	3.81 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	32
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Type	PLCC

CONN SOCKET PLCC 32POS TIN

Part	Number of Positions or Pins (Grid)	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Pitch - Post	Pitch - Post	Contact Finish - Post	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Contact Material - Post	Features	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 822475-2	32	PLCC	150 Áin	3.81 Ám	Solder	1.27 mm	0.05 in	Tin	Surface Mount	UL94 V-0	150 Áin	3.81 Ám	Phosphor Bronze	Phosphor Bronze	Closed Frame	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

32 (2 x 7, 2 x 9) Pos PLCC Socket Tin Surface Mount
