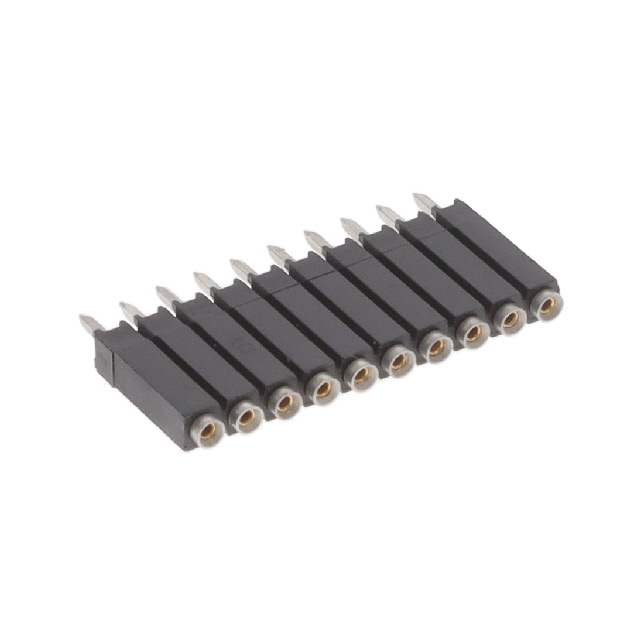

ESS-110-T-04

Active

Samtec Inc.

CONN SOCKET 10POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsESS Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-110-T-04

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.4 in
Insulation Height	10.16 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-110 Series

Part	Number of Positions	Insulation Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Fastening Type	Insulation Color	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Finish - Mating	Mounting Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. ESS-110-G-03	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Gold	3.12 mm	0.123 in	0.3 in	7.62 mm	Solder	10 çin	0.25 çm	1	Gold	Through Hole	Beryllium Copper	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	Female Socket
Samtec Inc. ESS-110-TT-23	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Tin	3.12 mm	0.123 in	0.3 in	7.62 mm	Solder			1		Through Hole	Beryllium Copper			0.1 in	2.54 mm	Circular	Female Socket
Samtec Inc. ESS-110-TT-24	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Tin	3.12 mm	0.123 in			Solder			1		Through Hole	Beryllium Copper			0.1 in	2.54 mm	Circular	Female Socket	0.4 in	10.16 mm
Samtec Inc. ESS-110-G-06	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Gold			0.3 in	7.62 mm	Solder	10 çin	0.25 çm	1	Gold	Through Hole	Beryllium Copper	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	Female Socket			0.215 in	5.46 mm
Samtec Inc. ESS-110-TT-25	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Tin					Solder			1		Through Hole	Beryllium Copper			0.1 in	2.54 mm	Circular	Female Socket	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-110-G-25	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Gold					Solder	10 çin	0.25 çm	1	Gold	Through Hole	Beryllium Copper	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	Female Socket	0.5 in	12.7 mm	0.173 in	4.4 mm
Samtec Inc. ESS-110-T-04	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Tin					Solder	10 çin	0.25 çm	1	Gold	Through Hole	Beryllium Copper			0.1 in	2.54 mm	Circular	Female Socket	0.4 in	10.16 mm	0.115 in	2.92 mm
Samtec Inc. ESS-110-G-28	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Gold			0.3 in	7.62 mm	Solder	10 çin	0.25 çm	1	Gold	Through Hole	Beryllium Copper	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	Female Socket			0.373 in	9.47 mm
Samtec Inc. ESS-110-TT-07	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Tin					Solder			1		Through Hole	Beryllium Copper			0.1 in	2.54 mm	Circular	Female Socket	0.4 in	10.16 mm	0.265 in	6.73 mm
Samtec Inc. ESS-110-G-24-L	10	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Elevated Socket	UL94 V-0	Push-Pull	Black	Gold	3.12 mm	0.123 in			Press-Fit Solder	10 çin	0.25 çm	1	Gold	Through Hole	Beryllium Copper	10 çin	0.25 çm	0.1 in	2.54 mm	Circular	Female Socket	0.4 in	10.16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.35
		10	$ 4.86
		100	$ 3.77
		500	$ 3.19
		1000	$ 2.98

Description

General part information

ESS-110 Series

10 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

ESS Datasheet

Datasheet
