MMT371A815
ActiveMETZ CONNECT USA Inc.

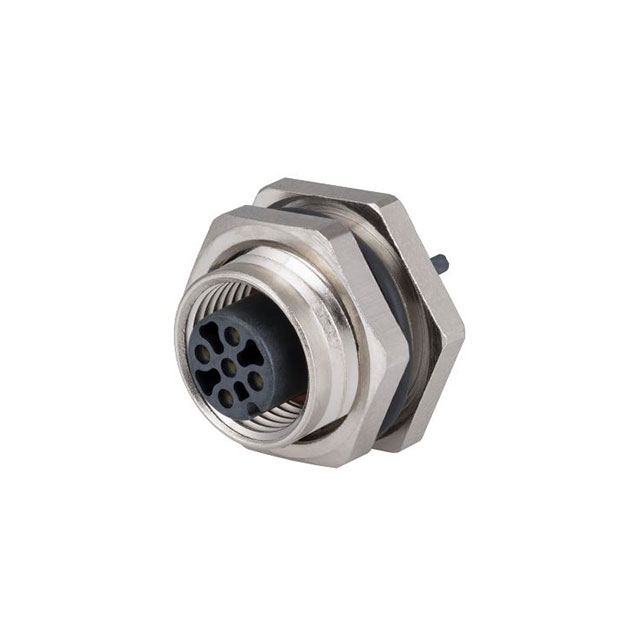

M12 PC BOARD JACK, IP67 WHEN MAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMT371A815
ActiveMETZ CONNECT USA Inc.
M12 PC BOARD JACK, IP67 WHEN MAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMT371A815 |
|---|---|
| Applications | Railway |
| Color | Silver |
| Connector Type | Female Sockets, Jack |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Features | Board Guide |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Brass |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.98 | |
| 10 | $ 12.73 | |||
| 30 | $ 11.78 | |||
| 50 | $ 11.36 | |||
| 100 | $ 10.82 | |||
| 250 | $ 10.14 | |||
| 500 | $ 9.66 | |||
| 1000 | $ 9.20 | |||
Description
General part information
MMT371A815
5 Position Circular Connector Jack, Female Sockets Solder
