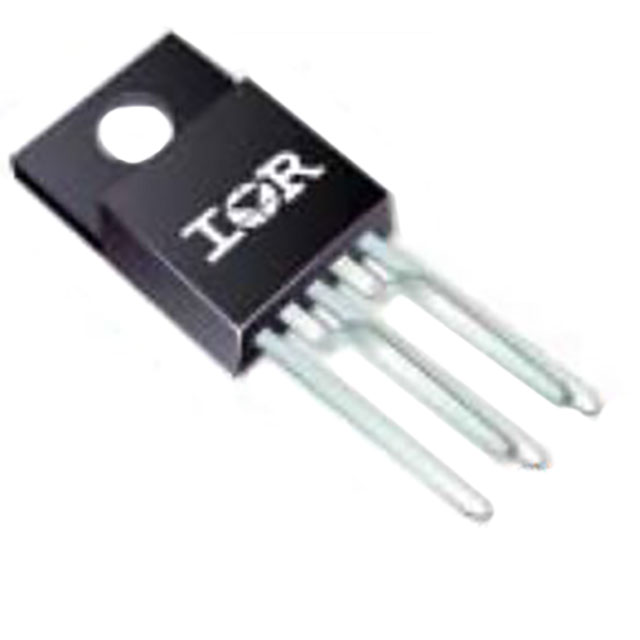

IRFI4019H-117PXKMA1
ActiveIR MOSFET™ N+N DUAL POWER MOSFET ; TO-220 FULLPAK PACKAGE; 95 MOHM;
Deep-Dive with AI
Search across all available documentation for this part.
IRFI4019H-117PXKMA1
ActiveIR MOSFET™ N+N DUAL POWER MOSFET ; TO-220 FULLPAK PACKAGE; 95 MOHM;
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IRFI4019H-117PXKMA1 |
|---|---|
| Configuration | 2 N-Channel (Dual) |
| Current - Continuous Drain (Id) @ 25°C | 8.7 A |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 810 pF |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-220-5 Full Pack, Formed Leads |
| Power - Max | 18 W |
| Rds On (Max) @ Id, Vgs | 95 mOhm |
| Supplier Device Package | TO-220-5 Full-Pak |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 4.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IRFI4019 Series
The StrongIRFET™ power MOSFET family is optimized for low RDS(on)and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.
