786554-9

Active

TE Connectivity AMP Connectors

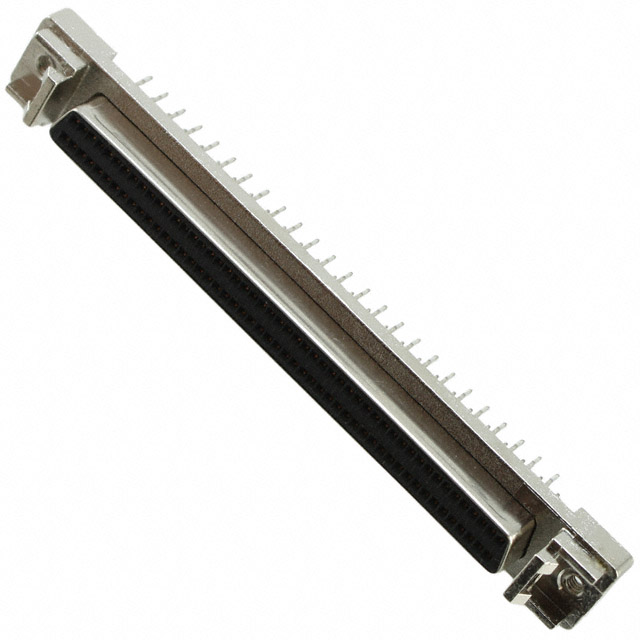

CONN D-TYPE RCPT 100P VERT PRESS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 100P VERT PRESS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	786554-9	786554 Series

Color	Black	Black
Connector Style	D-Type	D-Type
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Dielectric Material	Polyphthalamide (PPA)	Polyphthalamide (PPA)
Features	Shielded	Shielded
Flange Feature	Latchblocks, Housing/Shell (2-56), Rails	Latchblocks, Housing/Shell (2-56), Rails
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	100	20 - 100
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05	0.05
Shell Size, Connector Layout [y]	0.1	0.1
Termination	Press-Fit	Press-Fit
Voltage Rating	30 VDC	30 VDC

CONN D-TYPE RCPT 68P VERT PRESS

Part	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Connector Style	Features	Number of Positions	Mounting Type	Dielectric Material	Color	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Shell Material, Finish	Flange Feature	Material Flammability Rating	Termination	Number of Rows	Contact Type	Contact Material
TE Connectivity AMP Connectors 786554-7	0.05	0.1	D-Type	Shielded	68	Through Hole	Polyphthalamide (PPA)	Black	Receptacle, Female Sockets	30 VDC	105 ░C	-55 °C	Gold	Nickel Plated, Steel	Housing/Shell (2-56), Latchblocks, Rails	UL94 V-0	Press-Fit	2	Signal	Phosphor Bronze
TE Connectivity AMP Connectors 786554-9	0.05	0.1	D-Type	Shielded	100	Through Hole	Polyphthalamide (PPA)	Black	Receptacle, Female Sockets	30 VDC	105 ░C	-55 °C	Gold	Nickel Plated, Steel	Housing/Shell (2-56), Latchblocks, Rails	UL94 V-0	Press-Fit	2	Signal	Phosphor Bronze
TE Connectivity AMP Connectors 786554-1	0.05	0.1	D-Type	Shielded	20	Through Hole	Polyphthalamide (PPA)	Black	Receptacle, Female Sockets	30 VDC	105 ░C	-55 °C	Gold	Nickel Plated, Steel	Housing/Shell (2-56), Latchblocks, Rails	UL94 V-0	Press-Fit	2	Signal	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 23.39

General part information

100 Position D-Type Receptacle, Female Sockets Connector
