3-137-021
ActiveSCHURTER Inc.

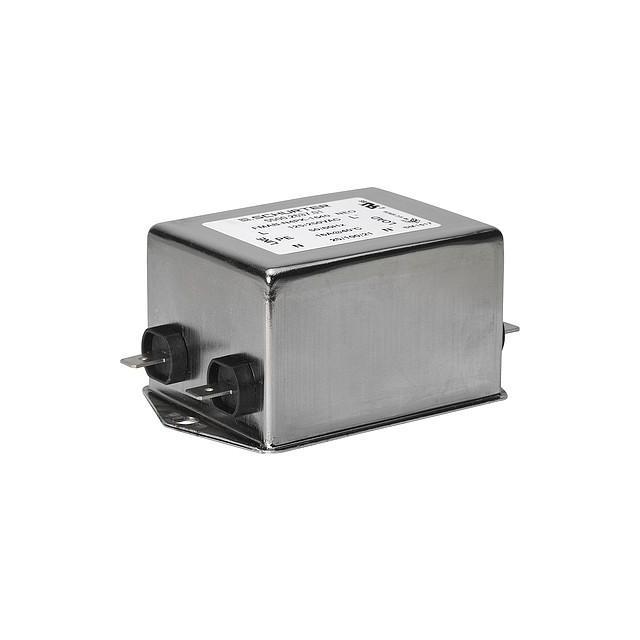

POWER LINE FILTER, MEDICAL, 250 VAC, 6 A, SINGLE PHASE, 1 STAGE, CHASSIS MOUNT
3-137-021
ActiveSCHURTER Inc.
POWER LINE FILTER, MEDICAL, 250 VAC, 6 A, SINGLE PHASE, 1 STAGE, CHASSIS MOUNT
Description
General part information
3-137-021
Single Phase EMC/EMI Line Filter 6 A 125V, 250V 50 ~ 60Hz Single Stage Quick Connect
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-137-021 |
|---|---|
| Applications | Medical |
| Approval Agency | CE, UKCA, cURus, ENEC |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
| Voltage - Rated AC | 125V, 250V |
