Description
General part information

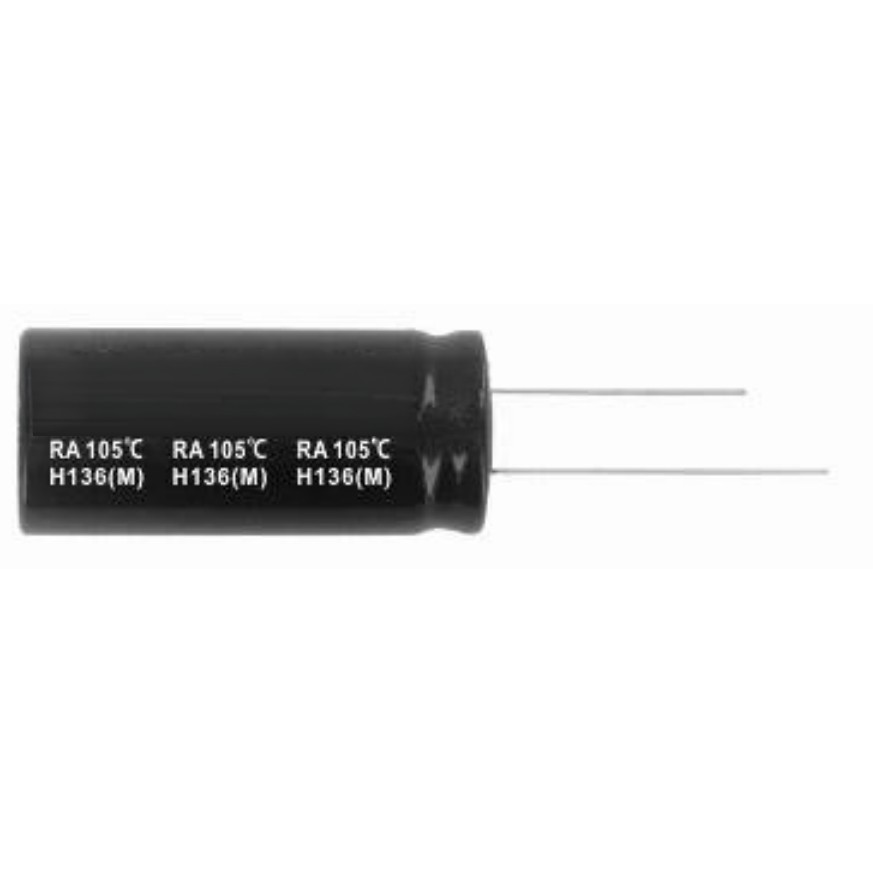

RA-4R7M1JBK-0511S
4.7 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | RA-4R7M1JBK-0511S |
|---|---|
| Applications | General Purpose |
| Capacitance | 4.7 µF |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.098 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 32 mA, 60.8 mA |
| Size / Dimension Diameter | 0.197 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
