A7PXB-0910G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB - AMM09B/AE09G/X
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7PXB-0910G | A7PXB Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 9 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB9 | DB9, DB25, DB15, DB50, DB37 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.02 | |
| 10 | $ 9.96 | |||
| 25 | $ 9.24 | |||
| 50 | $ 8.73 | |||
| 100 | $ 8.26 | |||
| 250 | $ 7.67 | |||
| 500 | $ 7.25 | |||
| 1000 | $ 6.86 | |||
A7PXB Series
CABLE D-SUB - AMM09B/AE09G/X
| Part | Length | Length | Type | Shielding | Number of Positions | 2nd Connector | Contact Finish | 1st Connector | Contact Finish Thickness | Contact Finish Thickness | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7PXB-0910G | 10 ft | 3.05 m | DB9 | Unshielded | 9 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7PXB-2506M | 6 ft | 1.83 m | DB25 | Unshielded | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7PXB-2510G | 10 ft | 3.05 m | DB25 | Unshielded | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7PXB-2506G | 6 ft | 1.83 m | DB25 | Unshielded | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7PXB-1506M | 6 ft | 1.83 m | DB15 | Unshielded | 15 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PXB-5010G | 10 ft | 3.05 m | DB50 | Unshielded | 50 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7PXB-3706M | 6 ft | 1.83 m | DB37 | Unshielded | 37 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PXB-5006M | 6 ft | 1.83 m | DB50 | Unshielded | 50 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PXB-0910M | 10 ft | 3.05 m | DB9 | Unshielded | 9 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7PXB-1510G | 10 ft | 3.05 m | DB15 | Unshielded | 15 | Individual Wire Leads | Gold | Plug, Male Pins | 0.76 Ám | 30 Áin |
Description
General part information
A7PXB Series

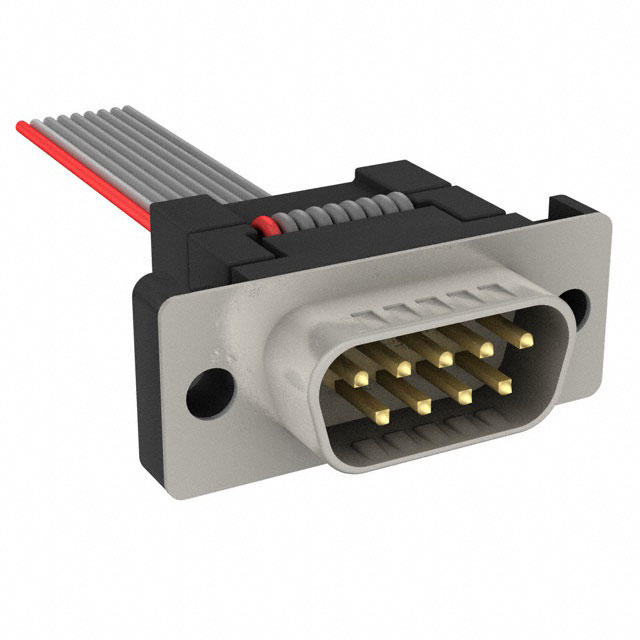

D-Sub Cable Assembly DB9 Gray, Ribbon 10.00' (3.05m) Plug, Male Pins to Individual Wire Leads Unshielded
