MS3108A24-28P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A24-28P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108A24-28P | MS3108A24 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 - 46 A |
| Features | - | Coupling Nut |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 24 | 4 - 24 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | - | 24-7, 24-22 |
| Shell Size - Insert [Max] | 28 | 28 |
| Shell Size - Insert [Min] | 24 | 24 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC | 200 - 1250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 86.81 | |
| 10 | $ 79.66 | |||
| 25 | $ 76.60 | |||
| 50 | $ 74.05 | |||
| 100 | $ 69.96 | |||
MS3108A24 Series
PLUG
| Part | Mounting Type | Color | Shell Finish | Contact Material | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Shielding | Insert Material | Applications | Number of Positions | Voltage Rating | Primary Material | Qualification | Contact Finish - Mating | Orientation | Connector Type | Grade | Current Rating (Amps) | Shell Material | Number of Positions | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A24-15S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-10S-RES | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-9S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-27P | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-3S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-28S | Free Hanging (In-Line), Right Angle | Olive Drab | Olive Drab Chromate over Cadmium | Copper Alloy | Coupling Nut | 28 | 24 | -55 °C | 125 °C | Environment Resistant | Unshielded | Neoprene | Marine, Military | 24 | 200 VAC, 250 VDC | Metal | MIL-DTL-5015 | Silver | N | Female Sockets, Plug | Military | 13 A | Aluminum Alloy | ||
Amphenol Industrial Operations MS3108A24-26S | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-28P | Free Hanging (In-Line), Right Angle | Olive Drab | Olive Drab Chromate over Cadmium | Copper Alloy | 28 | 24 | -55 °C | 125 °C | Environment Resistant | Unshielded | Neoprene | Marine, Military | 24 | 200 VAC, 250 VDC | Metal | MIL-DTL-5015 | Silver | N | Male Pins, Plug | Military | 13 A | Aluminum Alloy | |||
Amphenol Industrial Operations MS3108A24-7P | |||||||||||||||||||||||||
Amphenol Industrial Operations MS3108A24-6S |
Description
General part information
MS3108A24 Series

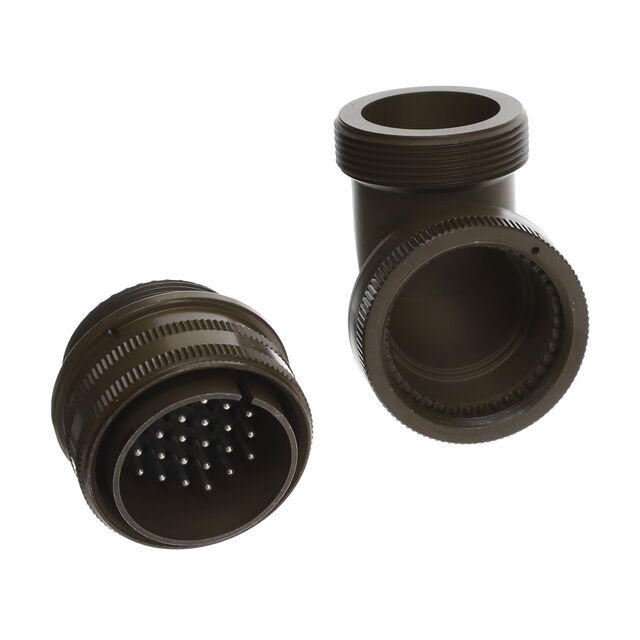

24 Position Circular Connector Plug, Male Pins Solder Cup
