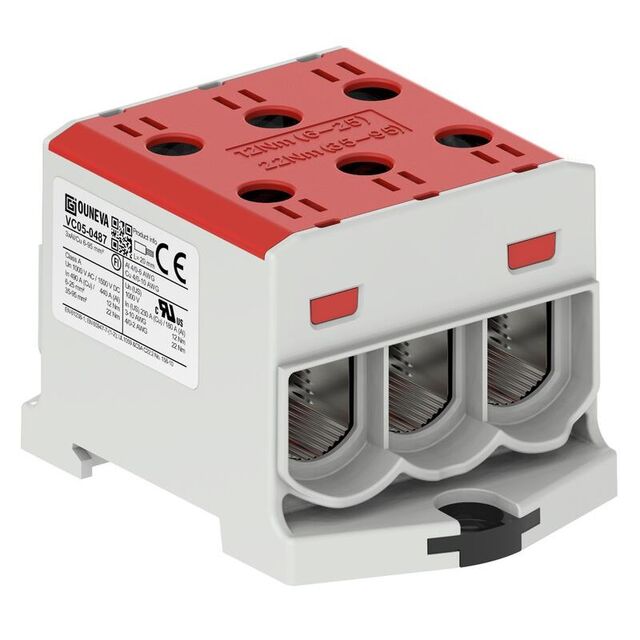

VC05-0487
3 Pole Power Distribution Block 490 A 1500 V
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0487 |
|---|---|
| Current Rating | 490 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire Material | CU, AL |
| Line Side Wire Size (Max) | 9.5 AWG |
| Line Side Wire Size (Min) | 4 AWG |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 4/0, 10 AWG CU/AL |
| Number of Poles | 3 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 VAC |
