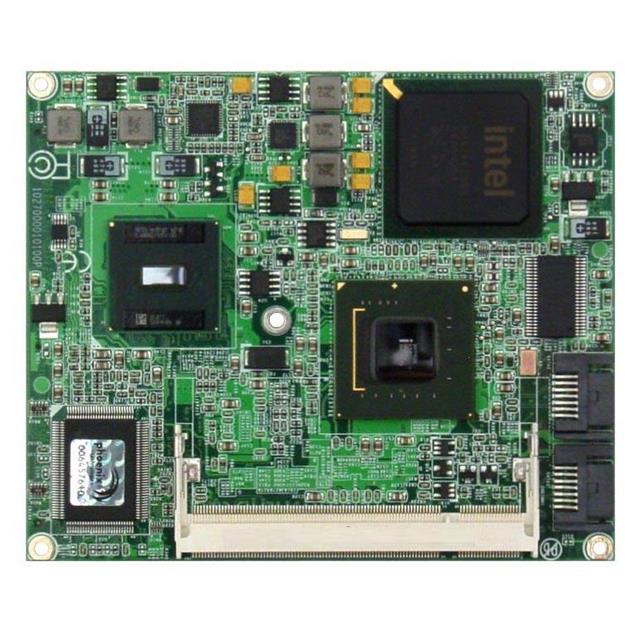

ETX-N270XT-1600
ActiveDiamond Systems
SBC 1.6GHZ 1 CORE 2GB/0GB RAM
ETX-N270XT-1600
ActiveDiamond Systems
SBC 1.6GHZ 1 CORE 2GB/0GB RAM
Description
General part information
ETX-N270XT-1600
Single Board Computer 1.6GHz 1 Core 2GB/0GB RAM Atom N270
Technical Specifications
Parameters and characteristics for this part
| Specification | ETX-N270XT-1600 |
|---|---|
| Contents | Mouse, Keyboard |
| Core Processor | Atom N270 |
| Ethernet Speed Options | 10, 100 |
| Expansion Site/Bus | SATA, SMBus, PCI, VGA, LVDS |
| Form Factor | ETX 3.0 |
| Number of Cores | 1 |
| Number of Storage Interfaces | 2 count |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 9 W |
| RAM Capacity | 2 GB |
| RAM Installed | 0 GB |
| Serial Interface Count | 2 |
| Size / Dimension Length | 4.488 in |
| Size / Dimension Width | 3.74 in |
| Speed | 1.6 GHz |
| Storage Interface | CompactFlash, SATA |
| Supported Serial Standards | RS-485, RS-422, RS-232 |
| USB | USB 2.0 |
| USB 2.0 Count | 4 count |
| Video Outputs | LVDS, DVI, VGA |
| Watchdog Timer | Yes |
