PEWCR1002
ActivePasternack

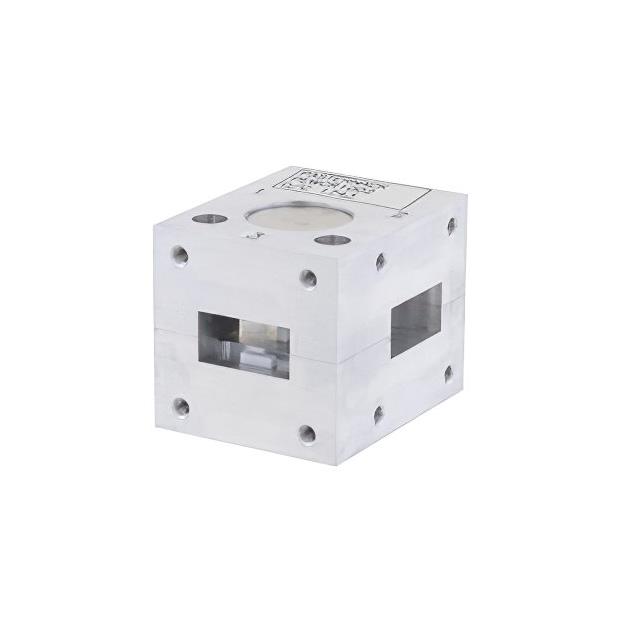

10-15 GHZ WAVEGUIDE CIRCULATOR,
PEWCR1002
ActivePasternack
10-15 GHZ WAVEGUIDE CIRCULATOR,
Description
General part information
PEWCR1002
10-15 GHZ WAVEGUIDE CIRCULATOR,
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWCR1002 |
|---|---|
| Frequency (Max) | 15 GHz |
| Frequency (Min) | 10 GHz |
| Insertion Loss (Max) | 0.5 dB |
| Isolation (Min) | 18 dB |
| Package / Case | Module |
| Power - Average Forward | 10 W |
| Type | Circulator |
| VSWR | 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
