Description
General part information

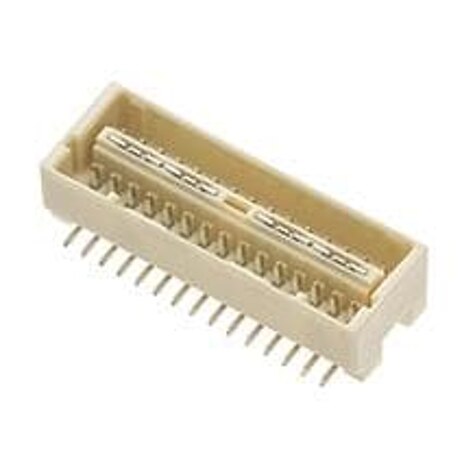

2011970320
HEADERS & WIRE HOUSINGS SPOT-ON 2.0 DR 201197 EMBSTP PKG 32P
Technical Specifications
Parameters and characteristics for this part
| Specification | 2011970320 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Latch Holder |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.354 in |
| Insulation Material | Nylon, Glass Filled, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.079 in |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
