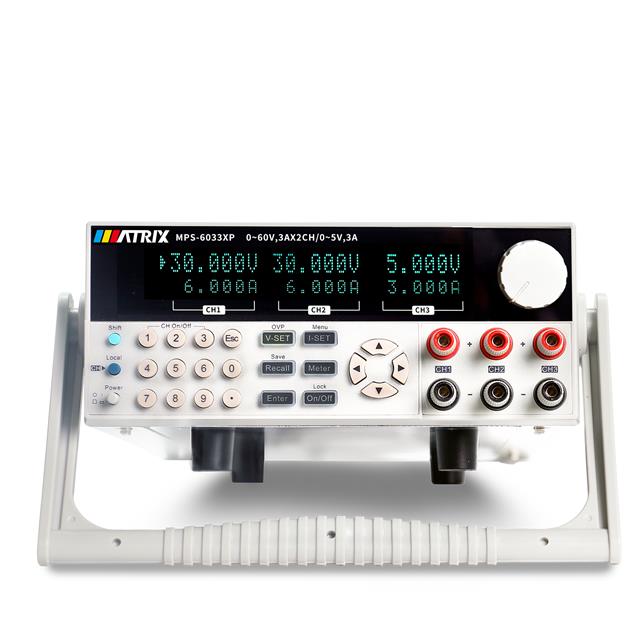

Specification	MPS-6033XP

Accuracy - Ammeter (Absolute)	0.005 mA
Accuracy - Ammeter (Percent)	0.1 %
Accuracy - Voltmeter (Absolute)	0.01 mV
Accuracy - Voltmeter (Percent)	0.03 %
Current - Output	0 ~ 3A, 0A, 3A
Current - Output (Channel 1) Maximum	3 A
Current - Output (Channel 1) Minimum	0 A
Current - Output (Channel 2) Maximum	3 A
Current - Output (Channel 2) Minimum	0 A
Current - Output (Channel 3) Maximum	3 A
Current - Output (Channel 3) Minimum	0 A
Current Regulation - Line (Absolute)	3 mA
Current Regulation - Line (Percentage)	0.01 %
Current Regulation - Load (Absolute)	3 mA
Current Regulation - Load (Percentage)	0.01 %
Display Type	VFD
Features	RS232, USB Interface, Programmable, RS232 and USB Interface, Memory
Maximum Output Current	3 A
Minimum Output Current	0 A
Number of Characters	17 characters, 5 characters
Number of Characters (Secondary)	2 characters
Number of Outputs	3
Power (Watts)	540 W
Ripple Current (RMS)	5 mA
Ripple Voltage (RMS)	2 mV
Size / Dimension Height	4.331 in
Size / Dimension Length	14.961 in
Size / Dimension Width	10.039 in
Type	Bench (AC to DC)
Voltage - Output (1)	0 V
Voltage - Output (2)	0 V
Voltage - Output (3)	0 V
Voltage - Output (4)	0 V
Voltage - Output (5)	60 V
Voltage - Output (6)	60 V
Voltage - Output (7)	60 V
Voltage - Output (Max)	60 V
Voltage - Output (Min)	0 V
Voltage - Supply	220 VAC, 110 VAC
Voltage - Supply	220VAC, 110VAC
Voltage Regulation - Line (Absolute)	3 mV
Voltage Regulation - Line (Percentage)	0.01 %
Voltage Regulation - Load (Percentage)	0.01 %
Voltage Regulation - Load (Voltage Offset)	3 mV
