828214-6
ActiveTE Connectivity AMP Connectors

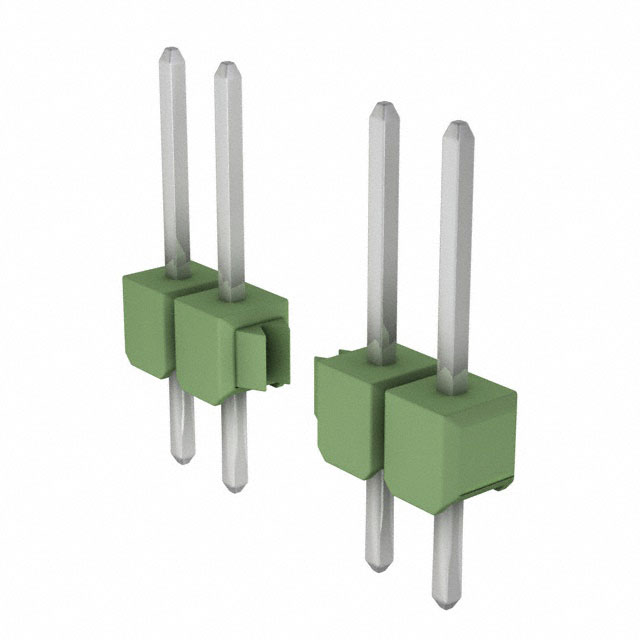

CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
828214-6
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 828214-6 | 828214 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7 µin | 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm | 2 µm |
| Contact Finish Thickness - Post | 2 çm | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin | 78.7 çin |
| Contact Length - Mating | 6.7 mm | 6.7 mm |
| Contact Length - Mating | 0.264 in | 0.264 in |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Green | Green |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 6 | 2 - 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Overall Contact Length | 12.7 mm | 12.7 mm |
| Overall Contact Length | 0.5 " | 0.5 " |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
828214 Series
CONN HEADER VERT 6POS 2.54MM
| Part | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Connector Type | Overall Contact Length | Overall Contact Length | Contact Shape | Termination | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Number of Positions | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Type | Insulation Material | Number of Rows | Fastening Type | Contact Material | Contact Length - Post | Contact Length - Post [x] | Number of Positions Loaded | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 828214-6 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 6 | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 |
TE Connectivity AMP Connectors 5-828214-0 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 50 | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 |
TE Connectivity AMP Connectors 828214-8 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 8 | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 |
TE Connectivity AMP Connectors 828214-2 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 2 | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 |
TE Connectivity AMP Connectors 828214-3 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 | |
TE Connectivity AMP Connectors 828214-4 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 4 | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 |
TE Connectivity AMP Connectors 828214-7 | Board to Board, Cable | 78.7 µin | 2 µm | Green | Breakaway, Header | 12.7 mm | 0.5 " | Square | Solder | 0.1 in | 2.54 mm | Tin | 2 çm | 78.7 çin | Unshrouded | 7 | 6.7 mm | 0.264 in | Through Hole | Male Pin | Polybutylene Terephthalate (PBT) | 1 | Push-Pull | Copper Alloy | 3.2 mm | 0.126 in | All | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.43 | |
| 10 | $ 1.31 | |||
| 100 | $ 1.17 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 0.94 | |||
| 5000 | $ 0.84 | |||
| 10000 | $ 0.80 | |||
Description
General part information
828214 Series
Connector Header Through Hole 6 position 0.100" (2.54mm)
