L513L-LWD10K34D
ActiveAmerican Opto Plus LED

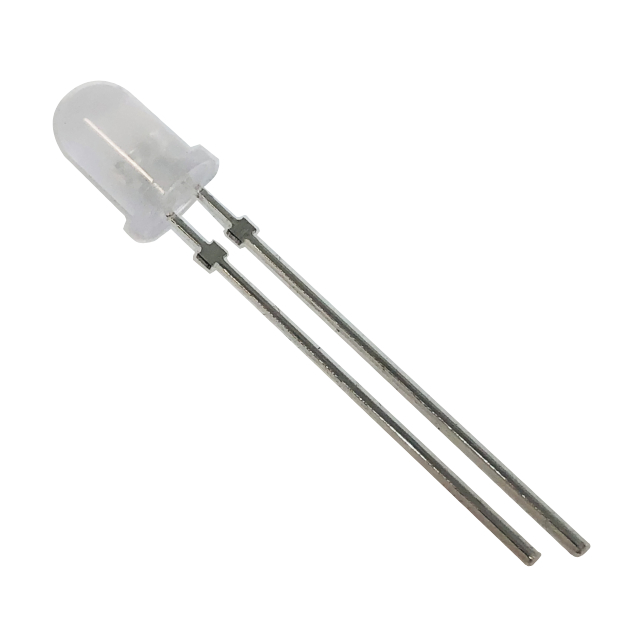

LED WHITE DIFFUSED T-1 3/4 T/H
L513L-LWD10K34D
ActiveAmerican Opto Plus LED
LED WHITE DIFFUSED T-1 3/4 T/H
Description
General part information
L513L-LWD10K34D
White LED Indication - Discrete 3.5V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | L513L-LWD10K34D |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 12.8 mm |
| Lens Color | White |
| Lens Diameter | 5 mm |
| Lens Style | Round, Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 1800 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Package Name | T-1 3/4 |
| Size / Dimension Diameter | 5 mm |
| Viewing Angle | 34 ° |
| Voltage - Forward (Vf) (Typ) | 3.5 V |
