Description
General part information

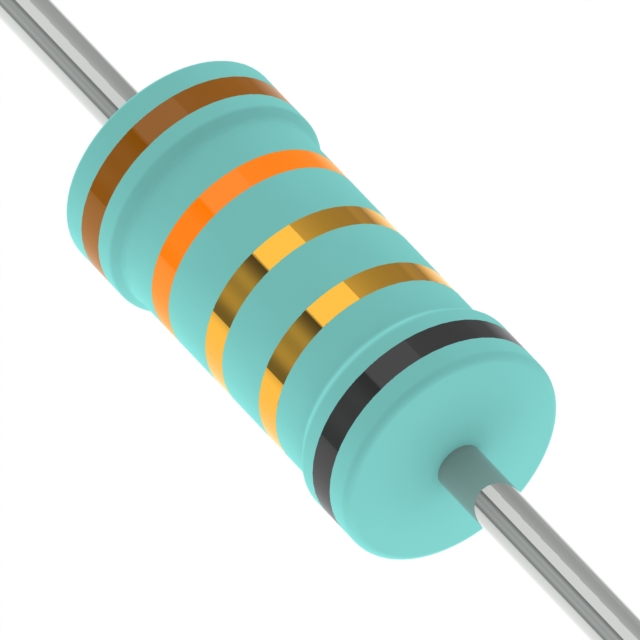

NKN200JR-73-1R3
1.3 Ohms ±5% 2W Through Hole Resistor Axial Flame Retardant Coating, Non-Inductive, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | NKN200JR-73-1R3 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Retardant Coating, Non-Inductive |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 2 w |
| Resistance | 1.3 Ohm |
| Size / Dimension Diameter | 0.209 in |
| Size / Dimension Length | 0.61 in |
| Tolerance | 5 % |
