3026706
ActivePhoenix Contact
CONN TERM BLK FEED THRU 8-26 AWG
3026706
ActivePhoenix Contact
CONN TERM BLK FEED THRU 8-26 AWG
Description
General part information
3026706

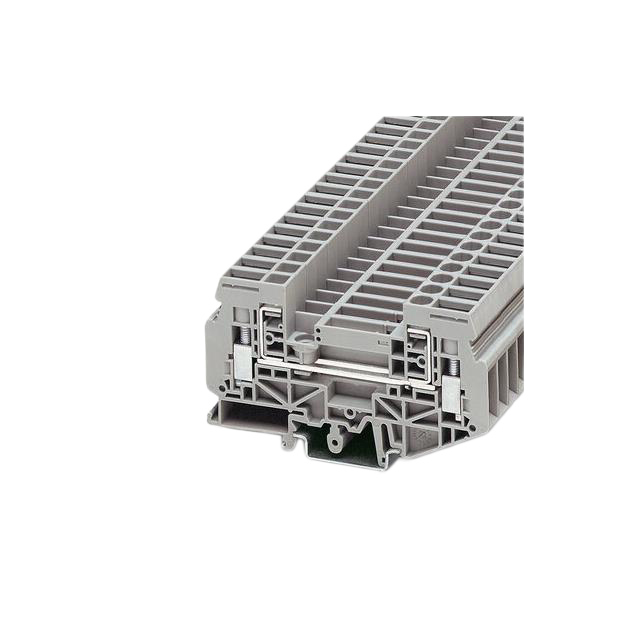

Terminal Block Connector 2 Position Feed Through Gray 8-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3026706 |
|---|---|
| Color | Gray |
| Current - IEC | 41 A |
| Current - UL | 50 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 10 mm |
| Terminal Width | 8.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 400 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 8 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
