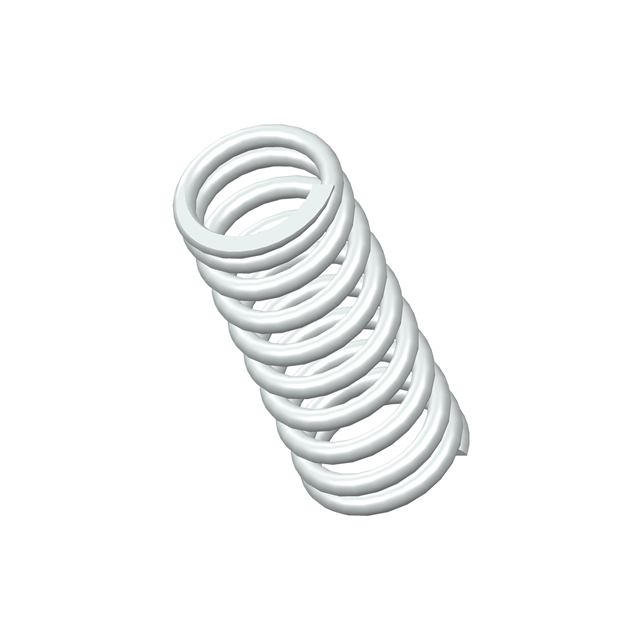

S-251CS
ActiveCentury Spring Corp
COMP O= .703,L= 1.75,W= .092
S-251CS
ActiveCentury Spring Corp
COMP O= .703,L= 1.75,W= .092
Description
General part information
S-251CS
COMP O= .703,L= 1.75,W= .092
Technical Specifications
Parameters and characteristics for this part
| Specification | S-251CS |
|---|---|
| Diameter - Inside | 0.519 in |
| Diameter - Outside | 0.703 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.75 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 49 lbs/in |
| Type | Compression |
| Wire Diameter | 0.092 in |
