A3AAH-2606G
ActiveTE Connectivity AMP Connectors
IDC CABLE - ASC26H/AE26G/ASC26H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
A3AAH-2606G
ActiveTE Connectivity AMP Connectors
IDC CABLE - ASC26H/AE26G/ASC26H
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3AAH-2606G | A3AAH Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple |
| Connector Type | Socket to Socket | Socket to Socket |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 457.2 - 914.4 mm |
| Length | - | 1.5 - 3 ft |
| Number of Positions | 26 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.57 | |
| 10 | $ 7.10 | |||
| 25 | $ 6.59 | |||
| 50 | $ 6.23 | |||
| 100 | $ 5.88 | |||
| 250 | $ 5.46 | |||
| 500 | $ 5.17 | |||
| 1000 | $ 4.89 | |||
A3AAH Series
IDC CABLE - ASC16H/AE16M/ASC16H
| Part | Contact Finish | Pitch - Cable | Pitch - Cable | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Rows | Shielding | Cable Termination | Length [x] | Length [x] | Pitch - Connector | Pitch - Connector | Number of Positions | Color | Length | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3AAH-1618M | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 16 | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3AAH-2606G | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 26 | ||||
TE Connectivity AMP Connectors A3AAH-1606M | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 0.1 in | 2.54 mm | 16 | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | |||
TE Connectivity AMP Connectors A3AAH-5018G | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 50 | |||||
TE Connectivity AMP Connectors A3AAH-3006G | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 0.1 in | 2.54 mm | 152.4 mm | 6 " | 0.5 ' | 30 | ||||
TE Connectivity AMP Connectors A3AAH-1436M | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 914.4 mm | 3 ft | 0.1 in | 2.54 mm | Multiple, Ribbon | 14 | ||||
TE Connectivity AMP Connectors A3AAH-4018M | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | Multiple, Ribbon | 40 | ||||
TE Connectivity AMP Connectors A3AAH-1418G | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 457.2 mm | 1.5 ft | 0.1 in | 2.54 mm | 14 | |||||
TE Connectivity AMP Connectors A3AAH-4036G | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 914.4 mm | 3 ft | 0.1 in | 2.54 mm | 40 | |||||
TE Connectivity AMP Connectors A3AAH-2006M | Gold | 0.05 " | 1.27 mm | 15 µin | 0.38 µm | Socket to Socket | 2 | Unshielded | IDC | 0.1 in | 2.54 mm | Multiple, Ribbon | 152.4 mm | 6 " | 0.5 ' | 20 |
Description
General part information
A3AAH Series

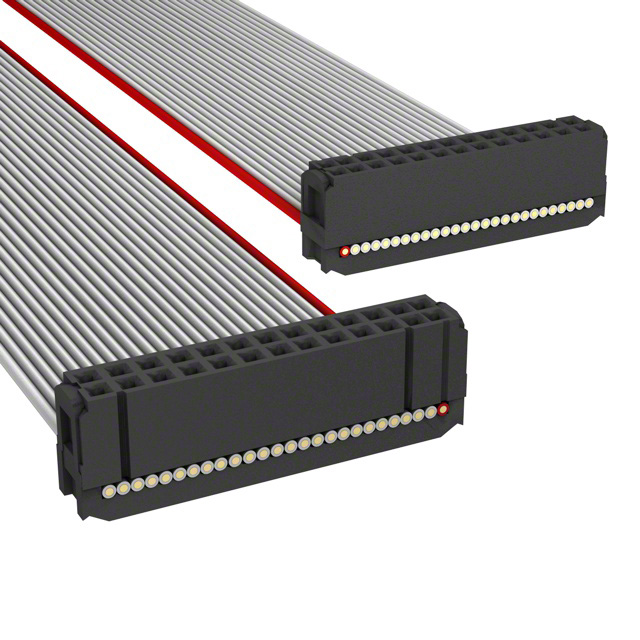

26 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
