Specification	1414798

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5 positions
1st Connector Number of Positions (Signal)	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	L
1st Connector Position Types	FE
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Gray
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP67, IP65
Length	9.84 ft
Shielding	Unshielded
Usage	Industrial Environments

TMP Series

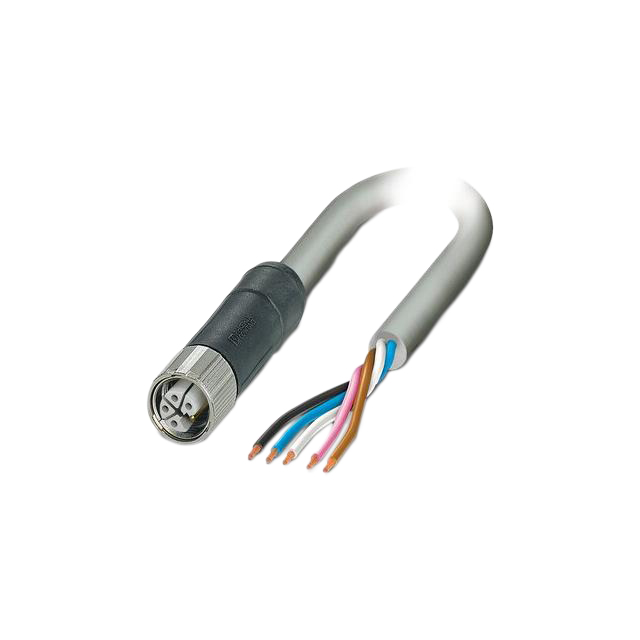

Sensor Cables / Actuator Cables SAC-5P-M12MSL/ 3-280 FE
