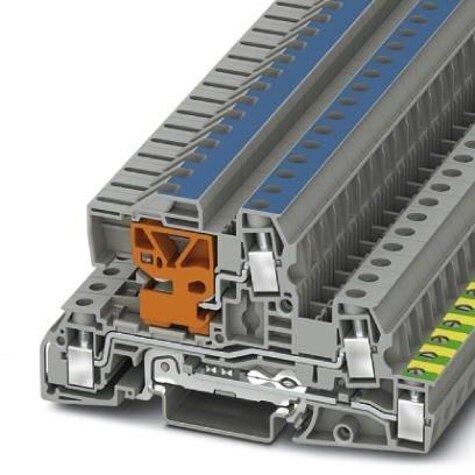

DIN RAIL TERMINAL BLOCKS UTI 6-PE/L/NT
3076039
ActivePhoenix Contact
DIN RAIL TERMINAL BLOCKS UTI 6-PE/L/NT
Description
General part information
3076039
DIN RAIL TERMINAL BLOCKS UTI 6-PE/L/NT
Technical Specifications
Parameters and characteristics for this part
| Specification | 3076039 |
|---|---|
| Grounded Levels | 1 |
| Housing Color | Gray |
| Mounting Type | DIN Rail |
| Number of Levels | 3 |
| Number of Positions | 5 |
| Terminal Width | 8.2 mm |
| Termination Style | Special, Hybrid |
| Type | Bus Bar - Side |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 8 AWG |
| Wire Gauge or Range - mm² (Maximum) | 10 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
