PEC08SAFN

Active

Sullins Connector Solutions

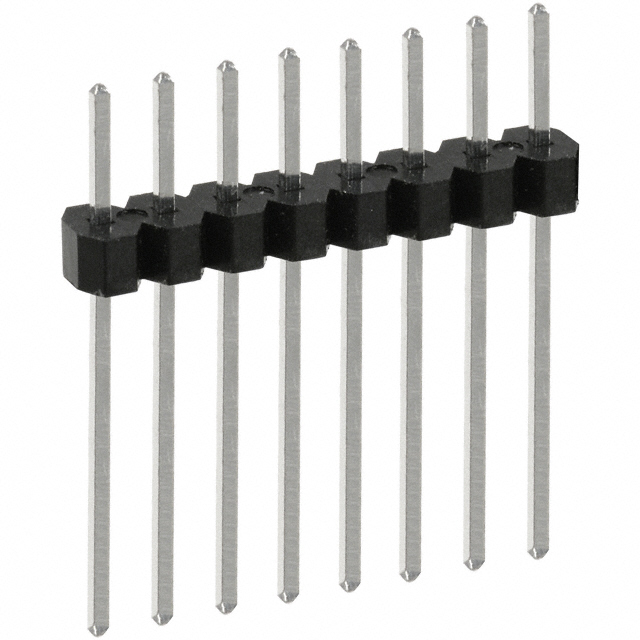

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC08SAFN

Active

Sullins Connector Solutions

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC08SAFN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.62 in
Contact Length - Post	15.75 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	24.13 mm
Overall Contact Length	0.95 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC08 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Style	Termination	Number of Positions Loaded	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Shrouding	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating	Number of Rows	Insulation Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PEC08DBBN	5.08 mm	0.2 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.23 in	5.84 mm	2	Black	Through Hole Right Angle	125 °C	-65 ░C	0.24 in	6.1 mm	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	Male Pin	16	Tin
Sullins Connector Solutions PEC08DFCN	8.13 mm	0.32 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.318 "		2	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	Male Pin	16	Tin	0.738 "	18.75 mm	8.08 mm
Sullins Connector Solutions PEC08DADN	10.67 mm	0.42 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.23 in	5.84 mm	2	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	Male Pin	16	Tin	0.75 in	19.05 mm
Sullins Connector Solutions PEC08SBDN	10.16 mm	0.4 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.23 in	5.84 mm	1	Black	Through Hole Right Angle	125 °C	-65 ░C	0.14 in	3.56 mm			3 A	0.1 in	2.54 mm	Male Pin		Tin				8
Sullins Connector Solutions PEC08SFDN	10.67 mm	0.42 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.318 "		1	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm			3 A	0.1 in	2.54 mm	Male Pin		Tin	0.838 in	21.29 mm	8.08 mm	8
Sullins Connector Solutions PEC08SAFN			Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.23 in	5.84 mm	1	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm			3 A	0.1 in	2.54 mm	Male Pin		Tin	0.95 in	24.13 mm		8	0.62 in	15.75 mm
Sullins Connector Solutions PEC08SFAN	3.05 mm	0.12 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.318 "		1	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm			3 A	0.1 in	2.54 mm	Male Pin		Tin	0.538 "	13.67 mm	8.08 mm	8
Sullins Connector Solutions PEC08SACN	8.13 mm	0.32 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.23 in	5.84 mm	1	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm			3 A	0.1 in	2.54 mm	Male Pin		Tin		0.65 in		8			16.51 mm
Sullins Connector Solutions PEC08SAEN			Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.23 in	5.84 mm	1	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm			3 A	0.1 in	2.54 mm	Male Pin		Tin	0.85 in	21.59 mm		8	0.52 "	13.21 mm
Sullins Connector Solutions PEC08DFAN	3.05 mm	0.12 in	Polybutylene Terephthalate (PBT)	Board to Board Cable	Solder	All	Square	Breakaway Header	2.54 çm	100 çin	2.54 µm	100 µin	Phosphor Bronze	UL94 V-0	Unshrouded	Push-Pull	0.318 "		2	Black	Through Hole	125 °C	-65 ░C	0.1 in	2.54 mm	2.54 mm	0.1 in	3 A	0.1 in	2.54 mm	Male Pin	16	Tin	0.538 "	13.67 mm	8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.37
		10	$ 1.04
		100	$ 0.80
		500	$ 0.67
		1000	$ 0.63
		5000	$ 0.57

Description

General part information

PEC08 Series

Connector Header Through Hole 8 position 0.100" (2.54mm)
