Description
General part information
21032962506

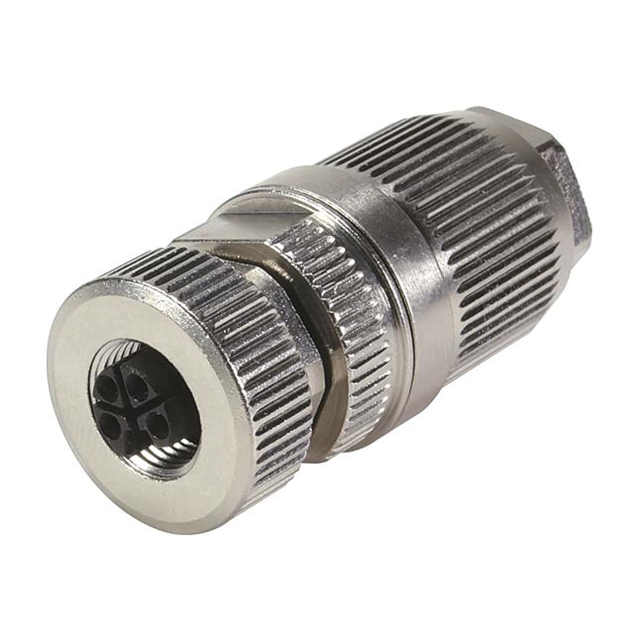

4 Position Circular Connector Plug, Female Sockets IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 21032962506 |
|---|---|
| Backshell Material, Plating | Zinc Die Cast |
| Cable Opening (Max) | 0.531 in |
| Cable Opening (Min) | 0.228 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 12 A |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | PA, Nylon, Polyamide |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | L |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 63 V |
