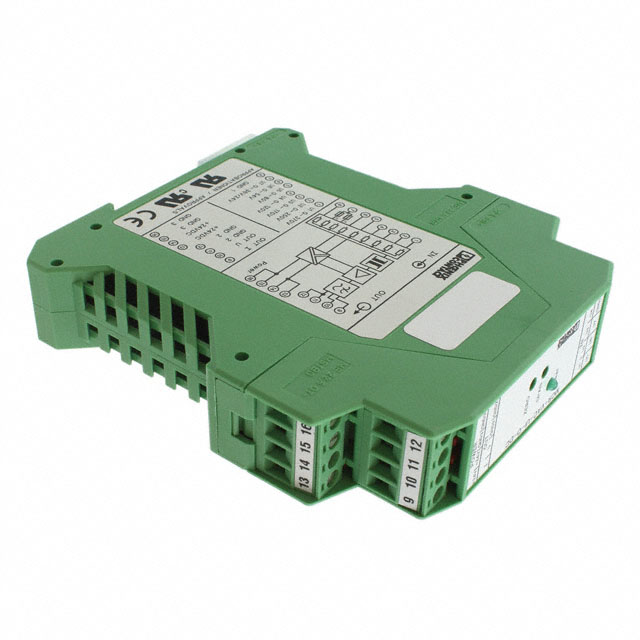

2811103
ObsoletePhoenix Contact
TRANSDUCER VOLTAGE 18.5-30.2VDC
2811103
ObsoletePhoenix Contact
TRANSDUCER VOLTAGE 18.5-30.2VDC
Description
General part information
2811103
AC Voltage Transducer 0 ~ 440VAC Input 0 ~ 10VDC, 0 ~ 20mA Output 18.5 ~ 30.2VDC DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 2811103 |
|---|---|
| Approval Agency | cULus, CE |
| Input Voltage (Max) | 440 VAC |
| Input Voltage (Min) | 0 mV |
| Isolation | 440 V, 3300 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current Range 1 (Max) | 20 mA |
| Output Current Range 1 (Min) | 0 mA |
| Output Voltage Range 1 (Max) | 10 V |
| Output Voltage Range 1 (Min) | 0 V |
| Termination Style | Spring Terminal |
| Type | AC Voltage Transducer |
| Voltage - Supply (Maximum) | 30.2 VDC |
| Voltage - Supply (Minimum) | 18.5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
