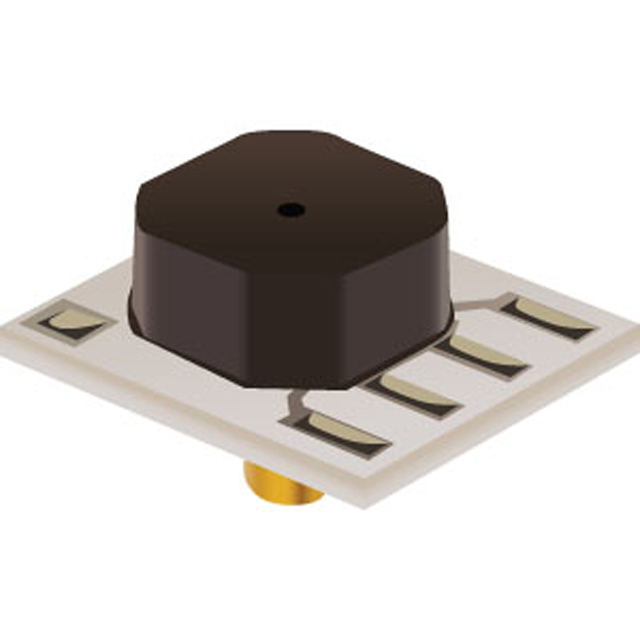

BPS340-HG100P-4L
ActiveBourns Inc.
UC PRESSURE SENSOR, 100 PSIA, 6.2MM PORT /TRAY PACKAGING
BPS340-HG100P-4L
ActiveBourns Inc.
UC PRESSURE SENSOR, 100 PSIA, 6.2MM PORT /TRAY PACKAGING
Description
General part information
BPS340-HG100P-4L
Pressure Sensor 100PSI (689.48kPa) Gauge Male - 0.059" (1.5mm) Tube 0 mV ~ 150 mV (5V) 4-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | BPS340-HG100P-4L |
|---|---|
| Accuracy | 0.2 % |
| Applications | Board Mount |
| Maximum Pressure | 200 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 100 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 150 mV |
| Output Voltage (Min) | 0 V |
| Package / Case | 4-SMD Module |
| Package Name | 4-SMD |
| Port Diameter | 0.059 in |
| Port Feature | Tube |
| Port Gender | Male |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 1.5 V |
