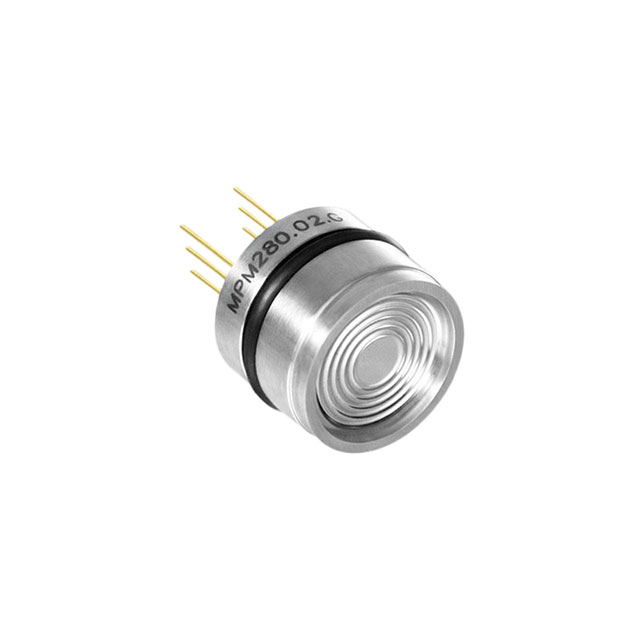

MPM280 03 G 0 L 1
ActiveMicro Sensor
SENSOR 14.5PSIG
MPM280 03 G 0 L 1
ActiveMicro Sensor
SENSOR 14.5PSIG
Description
General part information
MPM280 03 G 0 L 1
Pressure Sensor 14.5PSI (100kPa) Gauge Cell w/Body O-Ring Module
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM280 03 G 0 L 1 |
|---|---|
| Features | Temperature Compensated |
| Maximum Pressure | 21.76 PSI |
| Operating Pressure | 14.5 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Port Feature | O-Ring, w/Body, Cell |
| Port Style | No Port |
| Pressure Type | Gauge |
| Termination Style | PC Pin |
| Voltage - Supply | 10 V |
