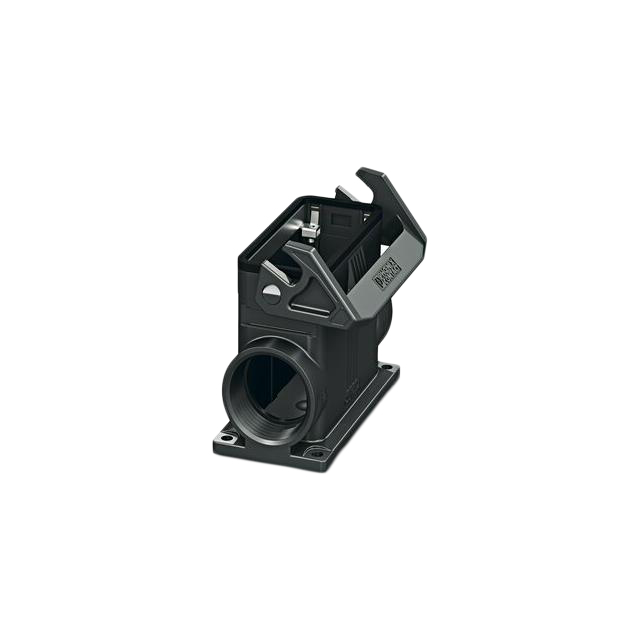

1421363
ActivePhoenix Contact
CONN BASE SZB16 SGL LOCK LATCH M
1421363
ActivePhoenix Contact
CONN BASE SZB16 SGL LOCK LATCH M
Description
General part information
1421363
Base - Box Mount Connector Side Entry M32 B16 IP66 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1421363 |
|---|---|
| Connector Type | Base - Box Mount |
| Features | Feed Through |
| Housing Color | Black |
| Housing Material | Nylon, Polyamide, PA |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B16 |
| Size / Dimension Height | 3.307 in |
| Size / Dimension Length | 4.606 in |
| Size / Dimension Width | 2.244 in |
| Style | Side Entry |
| Thread Size | M32 |
