LMR-400-DB-SM-NFBH(QTY:3ft)
ActiveMcGill Microwave Systems
LMR 400 DB CABLE ASSY 3FT SM TO
LMR-400-DB-SM-NFBH(QTY:3ft)
ActiveMcGill Microwave Systems
LMR 400 DB CABLE ASSY 3FT SM TO
Description
General part information
LMR-400-DB-SM-NFBH(QTY:3ft)

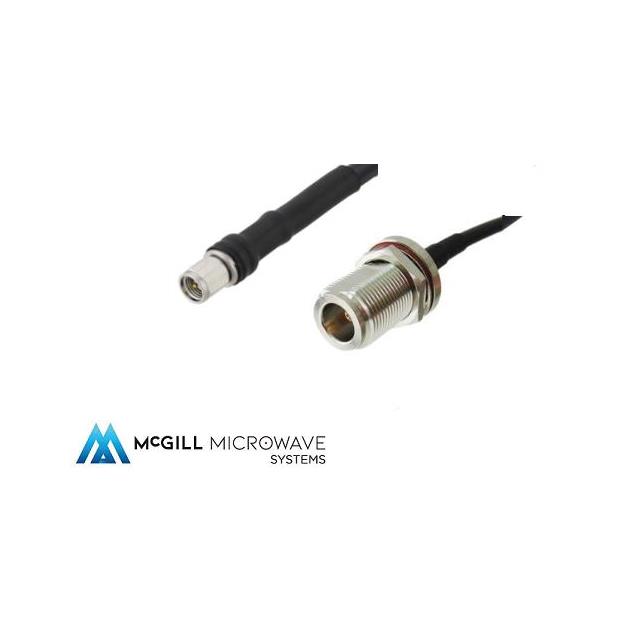

Cable Assembly Coaxial SMA to N-Type LMR 400 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LMR-400-DB-SM-NFBH(QTY:3ft) |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 400 |
| Color | Black |
| Length | 36 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | SMA, N-Type |
