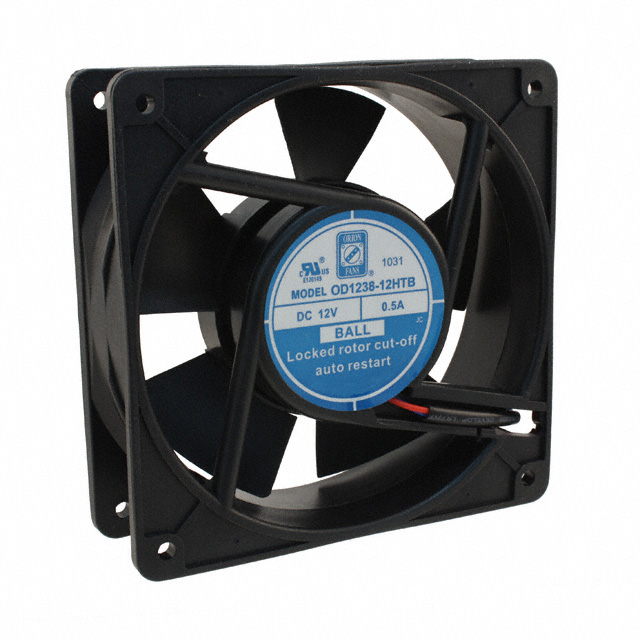

OD1238-12HTB
ActiveOrion Fans
DC FAN BALL BEARING 12V 0.5A 3000RPM 100CFM 42DB FLANGE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
OD1238-12HTB
ActiveOrion Fans
DC FAN BALL BEARING 12V 0.5A 3000RPM 100CFM 42DB FLANGE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OD1238-12HTB |
|---|---|
| Air Flow | 105 CFM |
| Air Flow | 2.94 m³/min |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.5 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 65000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 43 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 6 W |
| RPM | 2800 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 59.8 Pa |
| Static Pressure | 0.24 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 12 VDC |
| Width [y] | 38.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.96 | |
| 10 | $ 21.88 | |||
| 40 | $ 21.05 | |||
| 80 | $ 19.66 | |||
| 120 | $ 18.14 | |||
| 280 | $ 17.86 | |||
| 520 | $ 17.72 | |||
Description
General part information
OD1238-12HTB
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 105.0 CFM (2.94mł/min) 2 Terminals
