FMAM63010
ObsoleteFairview Microwave
LOWNOISEAMP 3100MHZ-3.5GHZ P1DB
FMAM63010
ObsoleteFairview Microwave
LOWNOISEAMP 3100MHZ-3.5GHZ P1DB
Description
General part information

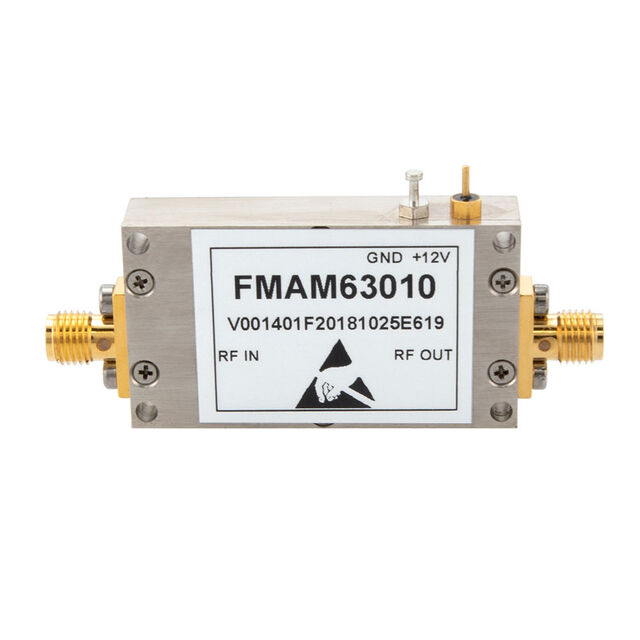

FMAM63010
RF Amplifier IC Radar 3.1GHz ~ 3.5GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM63010 |
|---|---|
| Current - Supply | 45 mA |
| Frequency (Max) | 3.5 GHz |
| Frequency (Min) | 3.1 GHz |
| Gain | 30 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 0.8 dB |
| P1dB | 8 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 8 V |
