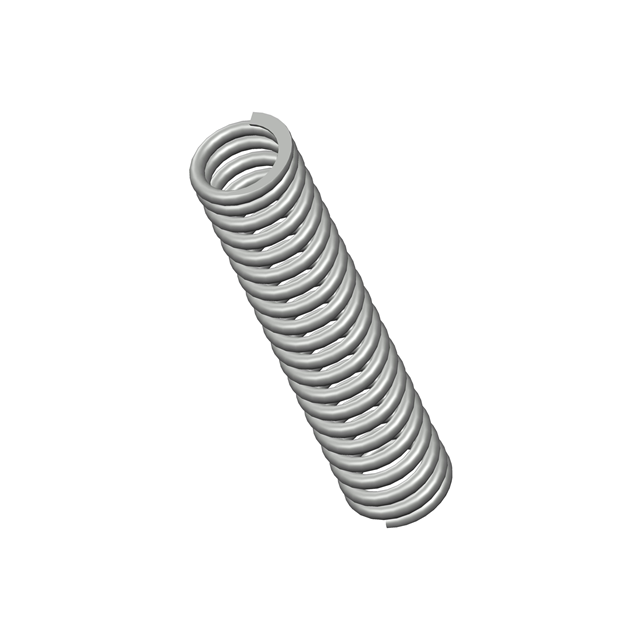

7003CS
ActiveCentury Spring Corp
COMP. O=1.125,L=5.312,W=.156
7003CS
ActiveCentury Spring Corp
COMP. O=1.125,L=5.312,W=.156
Description
General part information
7003CS
COMP. O=1.125,L=5.312,W=.156
Technical Specifications
Parameters and characteristics for this part
| Specification | 7003CS |
|---|---|
| Diameter - Inside | 0.813 in |
| Diameter - Outside | 1.125 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 5.31 in |
| Material | Hard Drawn |
| Rate (lbs/in) | 50 lbs/in |
| Type | Compression |
| Wire Diameter | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
