SM2152
ObsoleteFairview Microwave
ADAPT JACK-PLUG TYPE N
SM2152
ObsoleteFairview Microwave
ADAPT JACK-PLUG TYPE N
Description
General part information
SM2152

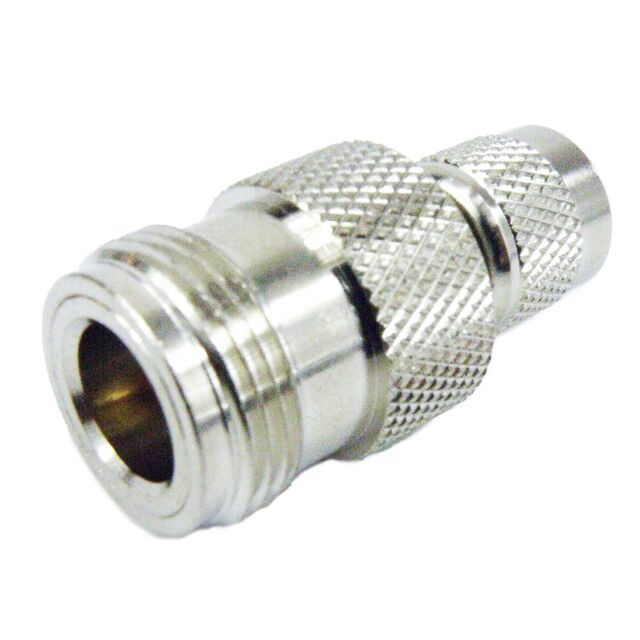

Adapter Coaxial Connector N Jack, Female Socket To UHF Mini Plug, Male Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2152 |
|---|---|
| Adapter Series | N to UHF, Mini |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | UHF Mini Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 2.5 GHz |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
