MMF405876
ActiveMicro-Measurements (Division of Vishay Precision Group)
C5K-06-062PR-350-39F - STRAIN GA
MMF405876
ActiveMicro-Measurements (Division of Vishay Precision Group)
C5K-06-062PR-350-39F - STRAIN GA
Description
General part information
MMF405876

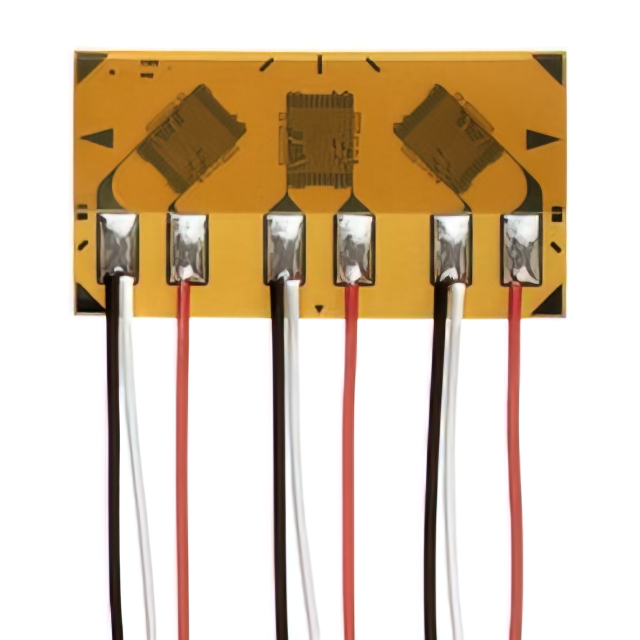

Rectangular Rosette Strain Gauge ±1.5% 0.062" (1.57mm) 0.062" (1.57mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405876 |
|---|---|
| Length - Active | 0.062 in |
| Length - Overall | 0.25 in |
| Length - Overall Pattern | 0.18 in |
| Length - Overall Pattern (mm) | 4.57 mm |
| Operating Temperature (Max) | 400 °F |
| Operating Temperature (Min) | -100 °F |
| Pattern Type | Rectangular Rosette |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.2 % |
| Strain Range (Maximum) | 1.5 % |
| Strain Range (Minimum) | -1.5 % |
| Width - Active | 0.062 in |
| Width - Overall | 0.46 in |
| Width - Overall Pattern | 0.416 in |
