1010694
ActiveIntegrated Power Designs
DC/DC CONVERTER 12V 2V 147W
1010694
ActiveIntegrated Power Designs
DC/DC CONVERTER 12V 2V 147W
Description
General part information
1010694

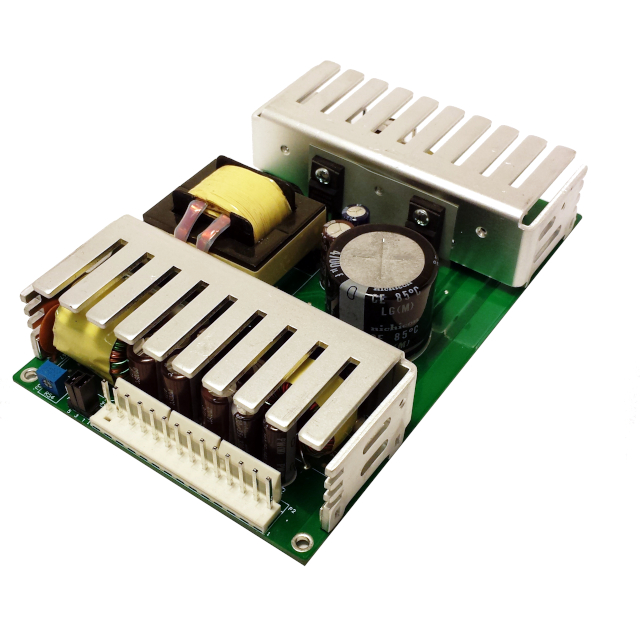

Open Frame DC DC Converter 2 Output 12V 2V 7.5A, 5A 72V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 1010694 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, UKCA, TUV, CE |
| Current - Output (Max) Options | 5A, 7.5A |
| Efficiency | 82 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 147 W |
| Size / Dimension Height | 1.32 in |
| Size / Dimension Length | 6 in |
| Size / Dimension Width | 3.83 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (Max) | 72 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 2 V |
