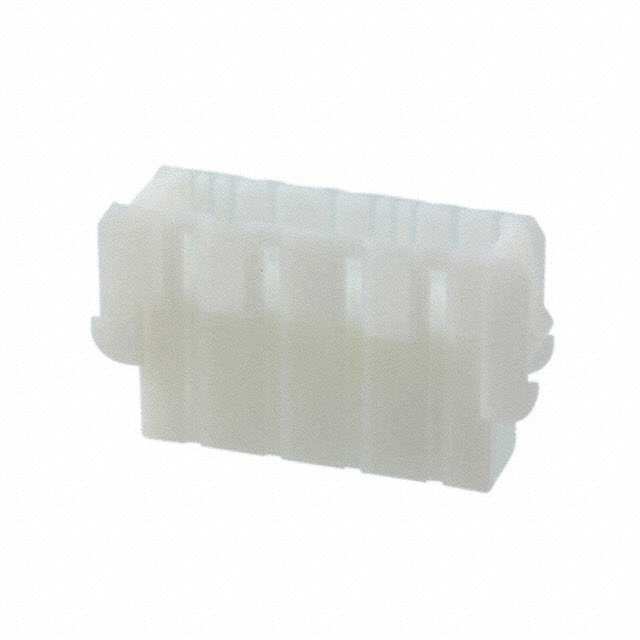

1241967-8
ActiveTE Connectivity AMP Connectors
CONN MALE TAB HSG 0.25 8POS NAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241967-8
ActiveTE Connectivity AMP Connectors
CONN MALE TAB HSG 0.25 8POS NAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241967-8 | 1241967 Series |
|---|---|---|
| Color | Natural | Natural |
| For Use With/Related Products | 0.25 in | 0.25 in |
| For Use With/Related Products | Quick Connects | Quick Connects |
| For Use With/Related Products | 6.35 mm | 6.35 mm |
| Gender | Tab, Male | Tab, Male |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 8 | 6 - 8 |
| Stacking Direction | Side to Side | Side to Side |
| Style | Housing | Housing |
| Terminal Size | 6.35 mm | 6.35 mm |
| Terminal Size | 0.25 in | 0.25 in |
| Terminal Type | Disconnect, Quick Connect | Disconnect, Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.74 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.26 | |||
| 200 | $ 1.13 | |||
| 400 | $ 1.07 | |||
| 600 | $ 1.03 | |||
| 1000 | $ 0.99 | |||
| 2600 | $ 0.92 | |||
1241967 Series
CONN MALE TAB HSG 0.25 8POS NAT
| Part | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Gender | Stacking Direction | Terminal Type | Number of Positions | Color | Note | Terminal Size | Terminal Size | Style | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241967-8 | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Side to Side | Disconnect, Quick Connect | 8 | Natural | Contacts Not Included | 6.35 mm | 0.25 in | Housing | Polyamide (PA66), Nylon 6/6 |
TE Connectivity AMP Connectors 5-1241967-8 | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Side to Side | Disconnect, Quick Connect | 8 | Natural | Contacts Not Included | 6.35 mm | 0.25 in | Housing | |
TE Connectivity AMP Connectors 5-1241967-6 | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Side to Side | Disconnect, Quick Connect | 6 | Natural | Contacts Not Included | 6.35 mm | 0.25 in | Housing |
Description
General part information
1241967 Series
8 Position Housing Connector Male, Tab Natural 0.250" (6.35mm)
Documents
Technical documentation and resources
