800-8-BL
ActiveCarling Technologies

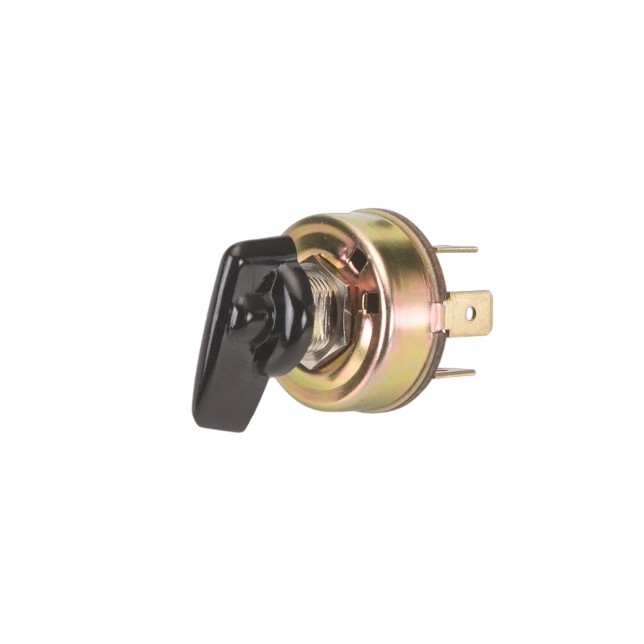

SWITCH SELECT 8POS SP8T 6A 125V
800-8-BL
ActiveCarling Technologies
SWITCH SELECT 8POS SP8T 6A 125V
Description
General part information
800-8-BL
Selector Switch 8 Position SP8T 6A (AC) 125 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 800-8-BL |
|---|---|
| Approval Agency | UL, CSA |
| Circuit | SP8T |
| Current Rating | 6 A |
| Depth Behind Flange | 16.66 mm |
| Features | Long Lever, Round, Bezel |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Number of Positions | 8 |
| Panel Cutout Diameter | 11.88 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On-On-On-On-On-On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
