Crystals, Oscillators, Resonators

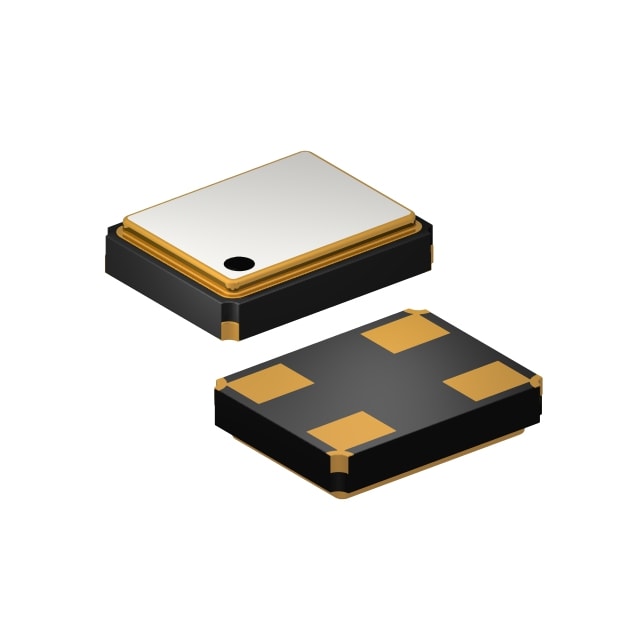

SXT32412EA38-50.000M
ActiveSuntsu Electronics, Inc
CRYSTAL 50.000MHZ 12PF SMD
Crystals, Oscillators, Resonators
SXT32412EA38-50.000M
ActiveSuntsu Electronics, Inc
CRYSTAL 50.000MHZ 12PF SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | SXT32412EA38-50.000M |
|---|---|
| ESR (Equivalent Series Resistance) | 35 Ohm |
| Frequency | 50 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 15 ppm |
| Height - Seated (Max) | 0.031 in |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | <1d |
| 10 | $ 0.30 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.24 | |||
| 500 | $ 0.22 | |||
CAD
3D models and CAD resources for this part
Description
General part information
SXT32412EA38-50.000M
50 MHz ±15ppm Crystal 12pF 35 Ohms 4-SMD, No Lead
Documents
Technical documentation and resources
