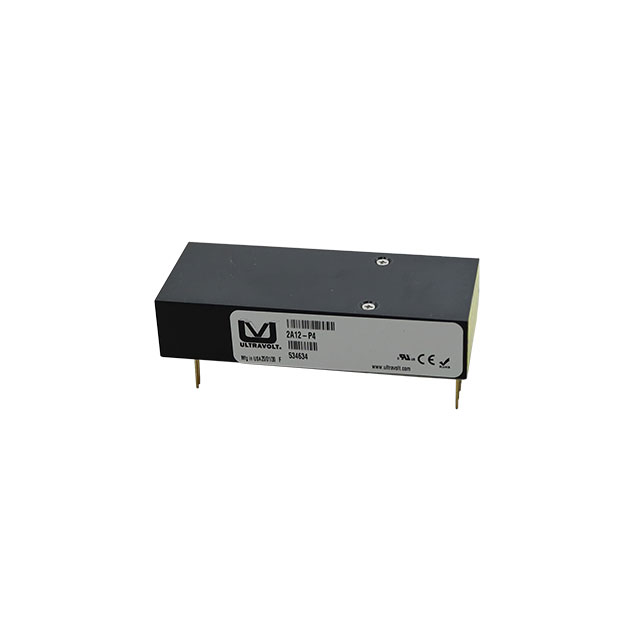

2A12-P4
ActiveULTRAVOLT / Advanced Energy
A-SERIES DC TO HVDC CONVERTER, S
2A12-P4
ActiveULTRAVOLT / Advanced Energy
A-SERIES DC TO HVDC CONVERTER, S
Description
General part information
2A12-P4
High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ 2000V 2mA 11V - 16V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 2A12-P4 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, cUL, UL |
| Current - Output (Max) | 2 mA |
| Features | Adjustable Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 11-DIP Module |
| Power (Watts) | 4 W |
| Size / Dimension Height | 0.77 in |
| Size / Dimension Length | 3.7 in |
| Size / Dimension Width | 1.5 in |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) | 16 V |
| Voltage - Input (Min) | 11 V |
| Voltage - Output 1 (Max) | 2000 V |
| Voltage - Output 1 (Min) | 0 V |
