Description
General part information
09352410501

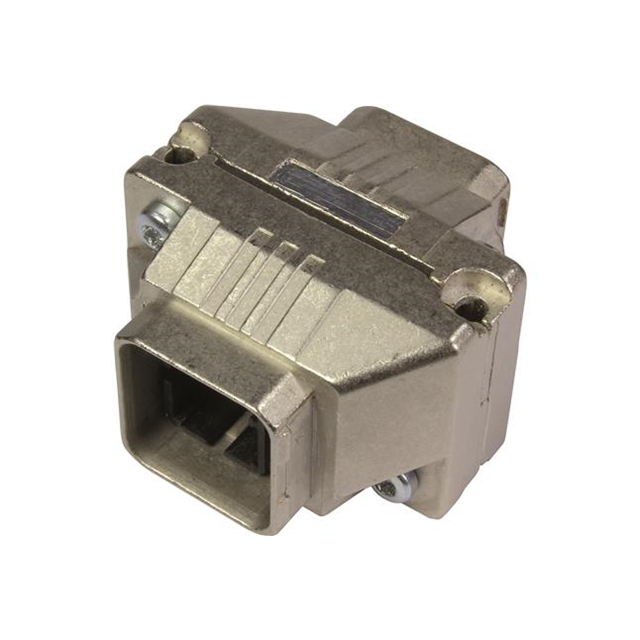

Coupler Fiber Optic Connector SCRJ Receptacle To SCRJ Receptacle Panel Mount, Square Flange
Technical Specifications
Parameters and characteristics for this part
| Specification | 09352410501 |
|---|---|
| Convert From (Adapter End) | SCRJ Receptacle |
| Convert To (Adapter End) | SCRJ Receptacle |
| Housing Material | Zinc Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Square Flange, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Simplex/Duplex | Duplex |
| Type | Coupler |
