STU7NF25

Active

STMicroelectronics

N-CHANNEL 250 V 290 MOHM TYP., 8 A, STRIPFET II POWER MOSFET IN A IPAK PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TN1224 +16

STU7NF25

Active

STMicroelectronics

N-CHANNEL 250 V 290 MOHM TYP., 8 A, STRIPFET II POWER MOSFET IN A IPAK PACKAGE

Deep-Dive with AI

DocumentsDatasheet TN1224 +16

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STU7NF25

Current - Continuous Drain (Id) @ 25°C	8 A
Drain to Source Voltage (Vdss)	250 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	16 nC
Input Capacitance (Ciss) (Max) @ Vds	500 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

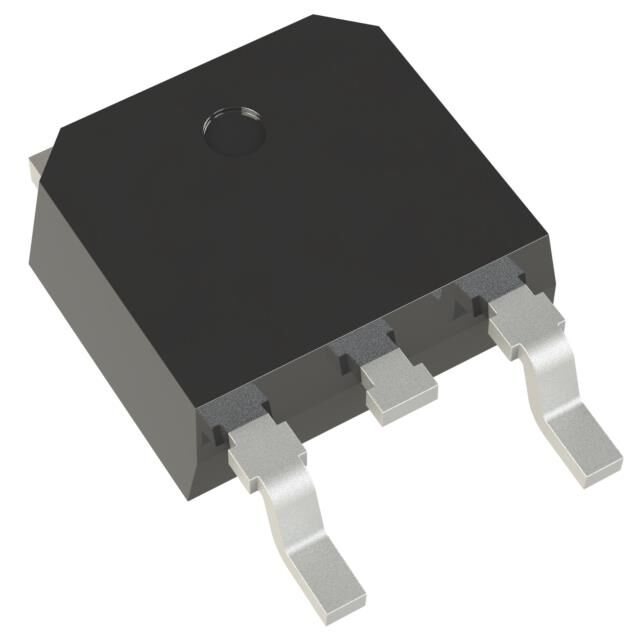

Package / Case	IPAK, TO-251-3 Short Leads, TO-251AA
Power Dissipation (Max) [Max]	72 W
Rds On (Max) @ Id, Vgs	420 mOhm
Supplier Device Package	TO-251 (IPAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

STU7NF25 Series

N-channel 250 V 290 mOhm typ., 8 A, STripFET II Power MOSFET in a IPAK package

Part	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Package / Case	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	FET Type	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Vgs (Max)
STMicroelectronics STU7NF25	8 A	16 nC	MOSFET (Metal Oxide)	IPAK, TO-251-3 Short Leads, TO-251AA	TO-251 (IPAK)	10 V	-55 °C	175 ░C	72 W	420 mOhm	4 V	N-Channel	Through Hole	500 pF	250 V	20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.53
		75	$ 1.23
		150	$ 0.98
		525	$ 0.83
		1050	$ 0.67
		2025	$ 0.63
		5025	$ 0.60
		10050	$ 0.58

Description

General part information

STU7NF25 Series

This Power MOSFET has been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the device suitable for use as primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, and applications with low gate charge driving requirements.

Documents

Technical documentation and resources

Datasheet

STU7NF25

Deep-Dive with AI

STU7NF25

Deep-Dive with AI

Technical Specifications

STU7NF25 Series

Pricing

Description

STU7NF25 Series

Documents

Datasheet

TN1224

AN2842

DS9844

AN4337

TN1225

AN2344

TN1378

UM1575

TN1156

AN4250
