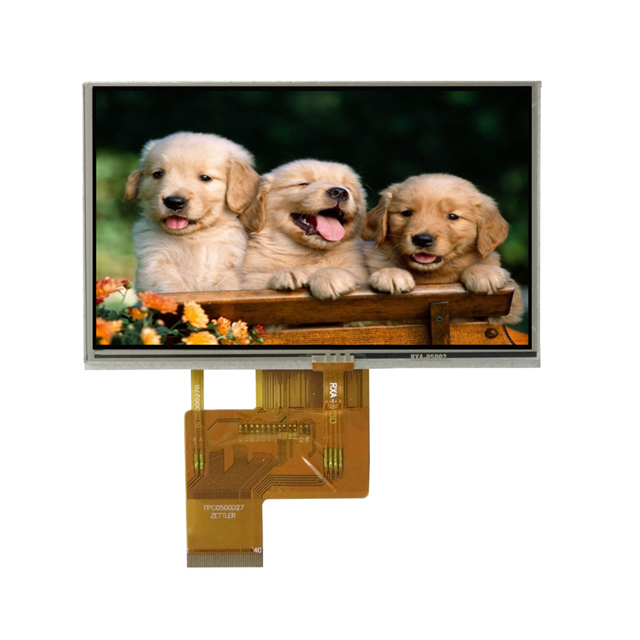

ATM0500D27K -T

Active

AZ Displays

5.0" IPS LCD 800 X 480 W /RTP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATM0500D27K -T

Active

AZ Displays

5.0" IPS LCD 800 X 480 W /RTP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 39.80

Description

General part information

ATM0500 Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color, IPS (In-Plane Switching) Parallel, 24-Bit (RGB) 5" (127.00mm) 800 x 480

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATM0500D27K -T	ATM0500 Series

Background Color	White	White, Black
Backlight	LED	LED
Diagonal Screen Size [custom]	127 mm	127 mm
Diagonal Screen Size [custom]	5 in	5 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color, IPS (In-Plane Switching)	TFT - Color, IPS (In-Plane Switching), TFT - Color
Dot Pitch [x]	0.05 mm	0.05 mm
Dot Pitch [y]	0.14 mm	0.14 mm
Dot Pixels [x]	800	800
Dot Pixels [y]	480	480
Dot Size	-	0.14 mm
Dot Size [x]	0.14 mm	0.14 mm
Dot Size [y]	0.14 mm	0.05 - 0.14 mm
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	Parallel	Parallel, 24-Bit (RGB), MIPI
Interface	24 Bit	24 Bit
Touchscreen	Resistive	Capacitive, Resistive
Viewing Area [x]	108 mm	108 - 110.6 mm
Viewing Area [y]	64.8 mm	64.8 - 67.4 mm

ATM0500 Series

GRAPHIC DISPLAY TFT RGB 5"

Part	Background Color	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Display Mode	Interface	Interface	Graphics Color	Backlight	Dot Size [x]	Dot Size [y]	Touchscreen	Dot Pitch [y]	Dot Pitch [x]	Display Type	Dot Size [z]
AZ Displays ATM0500D27-CT	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Capacitive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K-CT	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Capacitive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K -T	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Resistive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED		0.05 mm		0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)	0.14 mm
AZ Displays ATM0500H1	Black	127 mm	5 in	480	800	110.6 mm	67.4 mm	Transmissive	24-Bit (RGB)		Blue, Green, Red	LED				0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500M27K	Black	127 mm	5 in	480	800	110.6 mm	67.4 mm	Transmissive	MIPI		Blue, Green, Red	LED				0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27K-T		127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Resistive	0.14 mm	0.05 mm	TFT - Color
AZ Displays ATM0500H1-CT	Black	127 mm	5 in	480	800	108.8 mm	65.6 mm	Transmissive	24-Bit (RGB)		Blue, Green, Red	LED			Capacitive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
AZ Displays ATM0500D27B-T	White	127 mm	5 in	480	800	108 mm	64.8 mm	Transmissive	Parallel	24 Bit	Blue, Green, Red	LED	0.14 mm	0.14 mm	Resistive	0.14 mm	0.05 mm	TFT - Color, IPS (In-Plane Switching)
