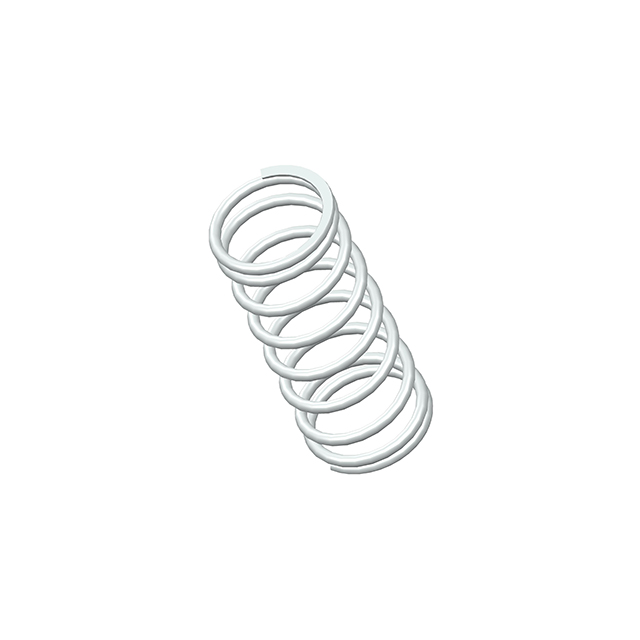

72672SCS
ActiveCentury Spring Corp
COMP O=1.225,L= 3.00,W= .112
72672SCS
ActiveCentury Spring Corp
COMP O=1.225,L= 3.00,W= .112
Description
General part information
72672SCS
COMP O=1.225,L= 3.00,W= .112
Technical Specifications
Parameters and characteristics for this part
| Specification | 72672SCS |
|---|---|
| Diameter - Inside | 1.001 in |
| Diameter - Outside | 1.225 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 3 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 21 lbs/in |
| Type | Compression |
| Wire Diameter | 0.112 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
