PAH.N0.3GL.LC65GZ
ActiveLEMO

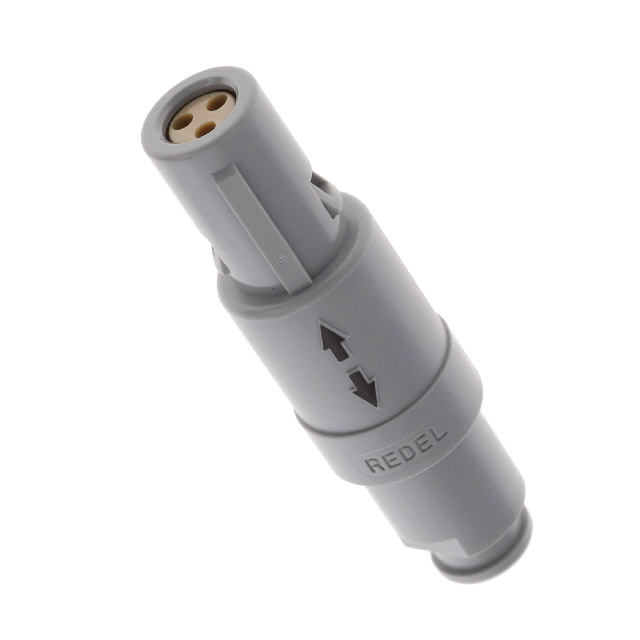

CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAH.N0.3GL.LC65GZ
ActiveLEMO
CONN PLUG FMALE 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAH.N0.3GL.LC65GZ | PAH.N0 Series |
|---|---|---|
| Applications | Medical | Medical |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU) |
| Cable Opening | - | 0.157 in |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 4 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening [custom] | 0.209 in, 0.256 in | 0.209 - 0.256 in |
| Cable Opening [custom] | 6.5 mm, 5.3 mm | 5.3 - 6.5 mm |
| Color | Gray | Gray |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 9 A | 9 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 3 | 3 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | H | H |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU) |
| Shell Size - Insert | N03 | N03 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VAC | 250 VAC |
PAH.N0 Series
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Backshell Material, Plating | Shielding | Orientation | Applications | Mounting Type | Primary Material | Number of Positions | Shell Material | Features | Color | Ingress Protection | Cable Opening [custom] | Cable Opening [custom] | Connector Type | Fastening Type | Shell Size - Insert | Insert Material | Voltage Rating | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 150 °C | -50 °C | 9 A | Polysulfone (PSU) | Unshielded | H | Medical | Free Hanging (In-Line) | Plastic | 3 | Polysulfone (PSU) | Backshell | Gray | IP50 | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | Female Sockets, Plug | Detent Lock, Push-Pull | N03 | Polyetheretherketone (PEEK) | 250 VAC | |||||
Gold | 150 °C | -50 °C | 9 A | Polysulfone (PSU) | Unshielded | H | Medical | Free Hanging (In-Line) | Plastic | 3 | Polysulfone (PSU) | Backshell | Gray | IP50 | Female Sockets, Plug | Detent Lock, Push-Pull | N03 | Polyetheretherketone (PEEK) | 250 VAC | 0.157 in | 0.205 in | 4 mm | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.92 | |
| 10 | $ 17.26 | |||
| 25 | $ 16.36 | |||
| 50 | $ 16.12 | |||
| 100 | $ 14.23 | |||
| 250 | $ 13.28 | |||
| 500 | $ 12.99 | |||
Description
General part information
PAH.N0 Series
3 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
