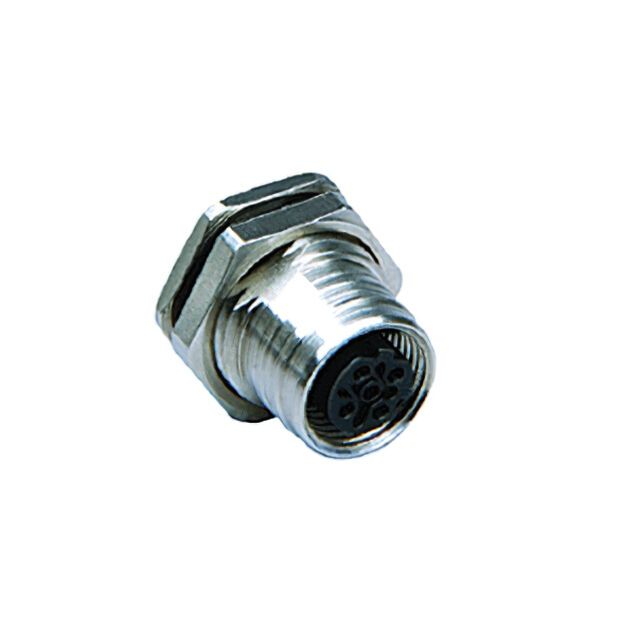

Specification	1200705201

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	3 positions
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Length	0.98 ft
Shielding	Unshielded

120070 Series

Micro-Change (M12) Receptacle, 3 Poles, M16x1.5 Mounting Threads, PCB Pins

...

Part	1st Connector Mounting Type	Cable Type	1st Connector Number of Positions	1st Connector Type	Shielding	Color	Assembly Configuration	1st Connector Shell Size - Insert	1st Connector Gender	Cable Material	2nd Connector Type	Usage	Ingress Protection Description	Ingress Protection IP Rating	Length	1st Connector Number of Positions Loaded	1st Connector Orientation
Molex 1200700056	Panel Mount	Individual	3 positions	Receptacle	Unshielded	Multiple	Standard	M12	Female Sockets	Polyvinyl Chloride (PVC)	Wire Leads	Industrial Environments	Dust Tight Waterproof	IP67	0.98 ft	All	Keyed
Molex 1200700145
Molex 1200700009
Molex 1200700215
Molex 1200700258	Panel Mount	Individual	5 positions	Receptacle	Unshielded	Multiple	Standard	M12	Male Pins	Polyvinyl Chloride (PVC)	Wire Leads	Industrial Environments	Dust Tight Waterproof	IP67	6.56 ft	All	A
Molex 1200708173	Panel Mount	Individual	5 positions	Receptacle	Unshielded	Multiple	Standard	M12	Male Pins		Wire Leads	Industrial Environments	Dust Tight Waterproof	IP67	6.56 ft	All
Molex 1200700212	Panel Mount	Individual	5 positions	Plug	Unshielded	Multiple	Standard	M12	Female Sockets	Polyvinyl Chloride (PVC)	Wire Leads	Industrial Environments	Dust Tight Waterproof	IP67	13.12 ft	All
Molex 1200705206	Panel Mount	Individual	5 positions	Plug	Unshielded	Multiple	Standard	M12	Female Sockets	Polyvinyl Chloride (PVC)	Wire Leads	Industrial Environments	Dust Tight Waterproof	IP67	12 in	All	B
Molex 1200700059	Panel Mount	Individual	3 positions	Receptacle	Unshielded	Multiple	Standard	M12	Female Sockets	Polyvinyl Chloride (PVC)	Wire Leads	Industrial Environments	Dust Tight Waterproof	IP67	1.64 ft	All
Molex 1200700130

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1200705201 | Datasheet

Drawing
