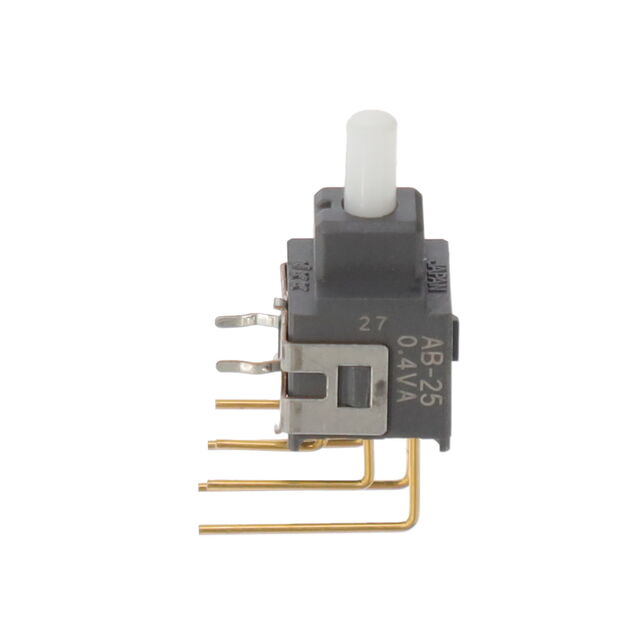

Specification	AB25AV

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Features	Fully, Sealed
Mechanical Life (Cycles)	50000 Cycles
Mounting Type	Vertical, Right Angle, Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

AB Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Circuit	Termination Style	Actuator Marking	Voltage Rating - AC	Type	Switch Function	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Features
NKK Switches AB11AP-HB	50000 Cycles	50000	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 °C	Button Round	28 V	Through Hole	White	Fully Sealed
NKK Switches AB11AP-FA	50000 Cycles	50000	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 °C	Button Round	28 V	Through Hole	Black	Fully Sealed
NKK Switches AB11AP-FB	50000 Cycles	50000	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 °C	Button Round	28 V	Through Hole	White	Fully Sealed
NKK Switches AB11AP-HA	50000 Cycles	50000	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 °C	Button Round	28 V	Through Hole	Black	Fully Sealed
NKK Switches AB11AP/N/C	50000 Cycles	50000	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 °C	Plunger for Cap	28 V	Through Hole	White	Fully Sealed
NKK Switches AB11AP-HC	50000 Cycles	50000	SPST-NO	PC Pin	No Marking	28 V	Standard	Off-Mom	0.4 VA	85 °C	-30 °C	Button Round	28 V	Through Hole	Red	Fully Sealed
