Technical Specifications
Parameters and characteristics for this part
| Specification | F340X261530MYI2T0 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 15 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Features | 85C/85% Humidity, 85% Humidity, 85C Humidity |
| Height - Seated (Max) | 1.811 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 2.264 in |
| Size / Dimension Width | 1.181 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 305 V |
| Voltage Rating - DC | 630 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 45 | $ 9.20 | <6d |
CAD
3D models and CAD resources for this part
Description
General part information

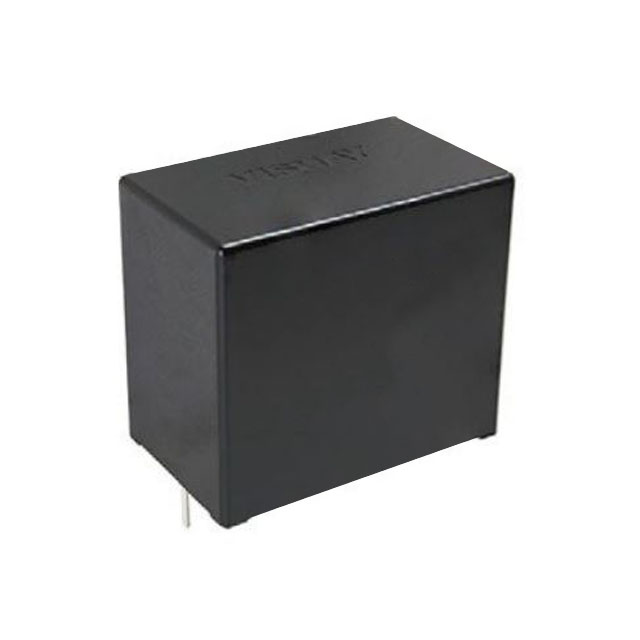

F340X261530MYI2T0
15 µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial
