25HK-AY-120A200-CP

Obsolete

IDEAL POWER

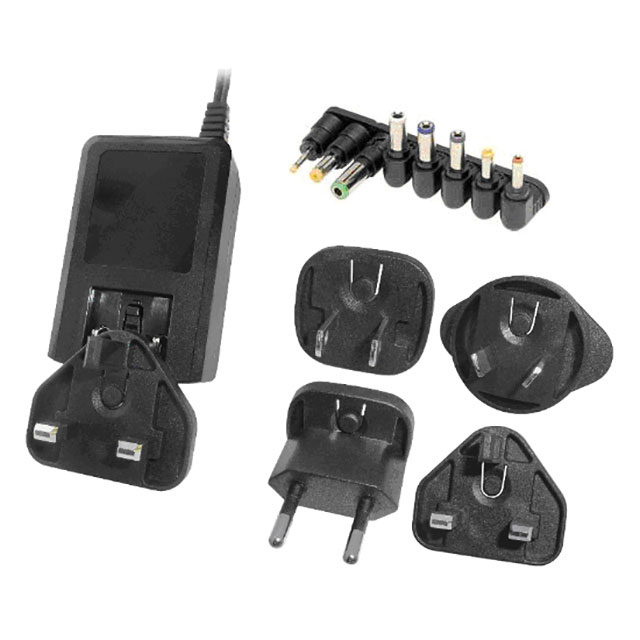

AC/DC WALL MOUNT ADAPTER 12V 24W

Search across all available documentation for this part.

Obsolete

IDEAL POWER

AC/DC WALL MOUNT ADAPTER 12V 24W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

12V 24 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	25HK-AY-120A200-CP	25HK-AY Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	TUV, UL, GS, CE, FCC, RCM, cUL, CB	TUV, UL, GS, CE, FCC, RCM, cUL, CB
Cord Length	-	1.5 - 1.8 m
Cord Length	-	59 - 70.9 in
Current - Output (Max) [Max]	2 A	2 - 2.66 A
Efficiency	Level VI	Level VI
Efficiency	-	86.19 - 86.2 %
Form	Wall Mount (Class II)	Desktop (Class II), Wall Mount (Class II)
Input Connector	Multi-Blade (Included)	IEC 320-C8, Multi-Blade (Included)
Input Type	Multi-Blade (Included)	Cord, Multi-Blade (Included)
No Load Power Consumption	-	100 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	-	Barrel Plug
Output Connector	-	2.1 - 5.5 mm
Output Connector	-	12 mm
Polarization	-	Positive Center
Power (Watts)	24 W	24 W
Region Utilized	International	International
Size / Dimension [x]	3.11 in	3.11 - 3.45 in
Size / Dimension [x]	79.1 mm	79.1 - 87.6 mm
Size / Dimension [y]	1.82 "	1.79 - 1.82 "
Size / Dimension [y]	46.2 mm	45.5 - 46.2 mm
Size / Dimension [z]	37 mm	35 - 37 mm
Size / Dimension [z]	1.46 "	1.38 - 1.46 in
Standard Number	62368-1	60950-1, 62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	9 - 12 V

AC/DC DESKTOP ADAPTER 9V 24W

Part	Cord Length	Cord Length	No Load Power Consumption	Power (Watts)	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Efficiency	Standard Number	Form	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Type	Polarization	Approval Agency	Input Connector	Operating Temperature [Max]	Efficiency
IDEAL POWER 25HK-AY-090A266-DH	1.5 m	59 in	100 mW	24 W	International	90 VAC	264 VAC	9 V	2.66 A	86.7 mm	1.38 in	45.5 mm	1.79 "	3.41 in	35 mm	ITE (Commercial)	86.19 %	60950-1	Desktop (Class II)	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Cord	Positive Center	CB, CE, cUL, FCC, GS, RCM, TUV, UL	IEC 320-C8	40 °C
IDEAL POWER 25HK-AY-120A200-CP				24 W	International	90 VAC	264 VAC	12 V	2 A	79.1 mm	1.46 "	46.2 mm	1.82 "	3.11 in	37 mm	ITE (Commercial)		62368-1	Wall Mount (Class II)				Multi-Blade (Included)		CB, CE, cUL, FCC, GS, RCM, TUV, UL	Multi-Blade (Included)	40 °C	Level VI
IDEAL POWER 25HK-AY-120A200-DH	1.8 m	70.9 in	100 mW	24 W	International	90 VAC	264 VAC	12 V	2 A	87.6 mm	1.38 in	45.5 mm	1.79 "	3.45 in	35 mm	ITE (Commercial)	86.2 %	60950-1	Desktop (Class II)	Barrel Plug	2.1 mm, 5.5 mm	12 mm	Cord	Positive Center	CB, CE, cUL, FCC, GS, RCM, TUV, UL	IEC 320-C8	40 °C
