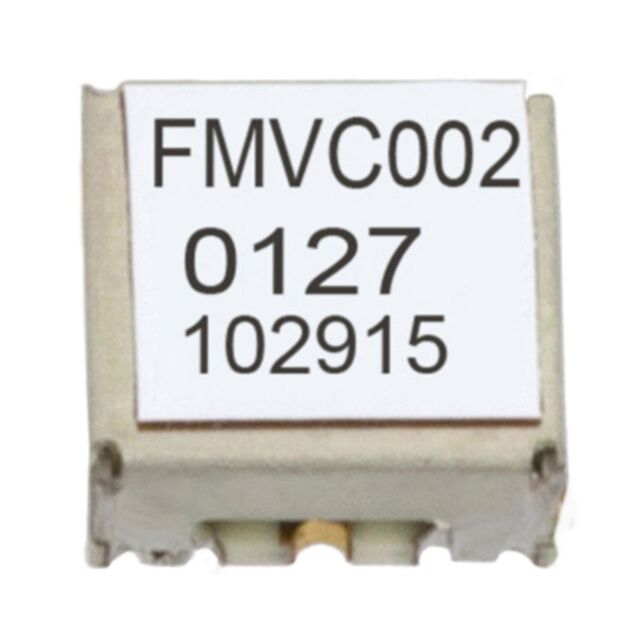

Specification	FMVC002

2nd Harmonic (Typ) (dBc)	-8 dBc
Frequency - Center	375 MHz
Frequency Range (Max)	500 MHz
Frequency Range (Min)	250 MHz
Height	0.075 in
Icc Max	20 mA
Maximum Tuning Voltage (VDC)	20 V
Minimum Tuning Voltage (VDC)	0 V
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	8-SMD Module
Phase Noise Typ (dBc/Hz)	-107 dBc/Hz
Power (dBm) (Nominal)	8 dBm
Power (dBm) Tolerance (Negative)	1 dBm
Power (dBm) Tolerance (Positive)	2 dBm
Pushing (MHz/V)	17 MHz/V
Size / Dimension Length	0.173 in
Size / Dimension Width	0.173 in
Voltage - Supply	5 VDC
