1183-0.75-6

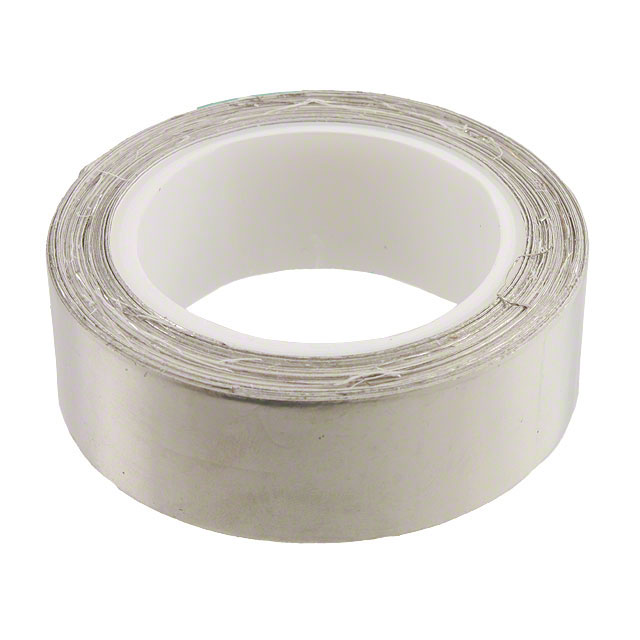

RF EMI Shielding Tape 1183 Tin-Plated Copper Foil Conductive, Single Sided 0.750" (19.10mm) X 18.000' (5.50m) X 0.003" (0.07mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1183-0.75-6 |
|---|---|
| Adhesive | Single Sided, Conductive |
| Length | 18 ft |
| Material | Tin-Plated Copper Foil |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Shelf Life | 60 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature (Maximum) | 80 °F |
| Storage/Refrigeration Temperature (Minimum) | 50 °F |
| Thickness - Overall | 0.003 in |
| Type | Shielding Tape |
| Width | 0.75 in |
